COB RGBW Strip

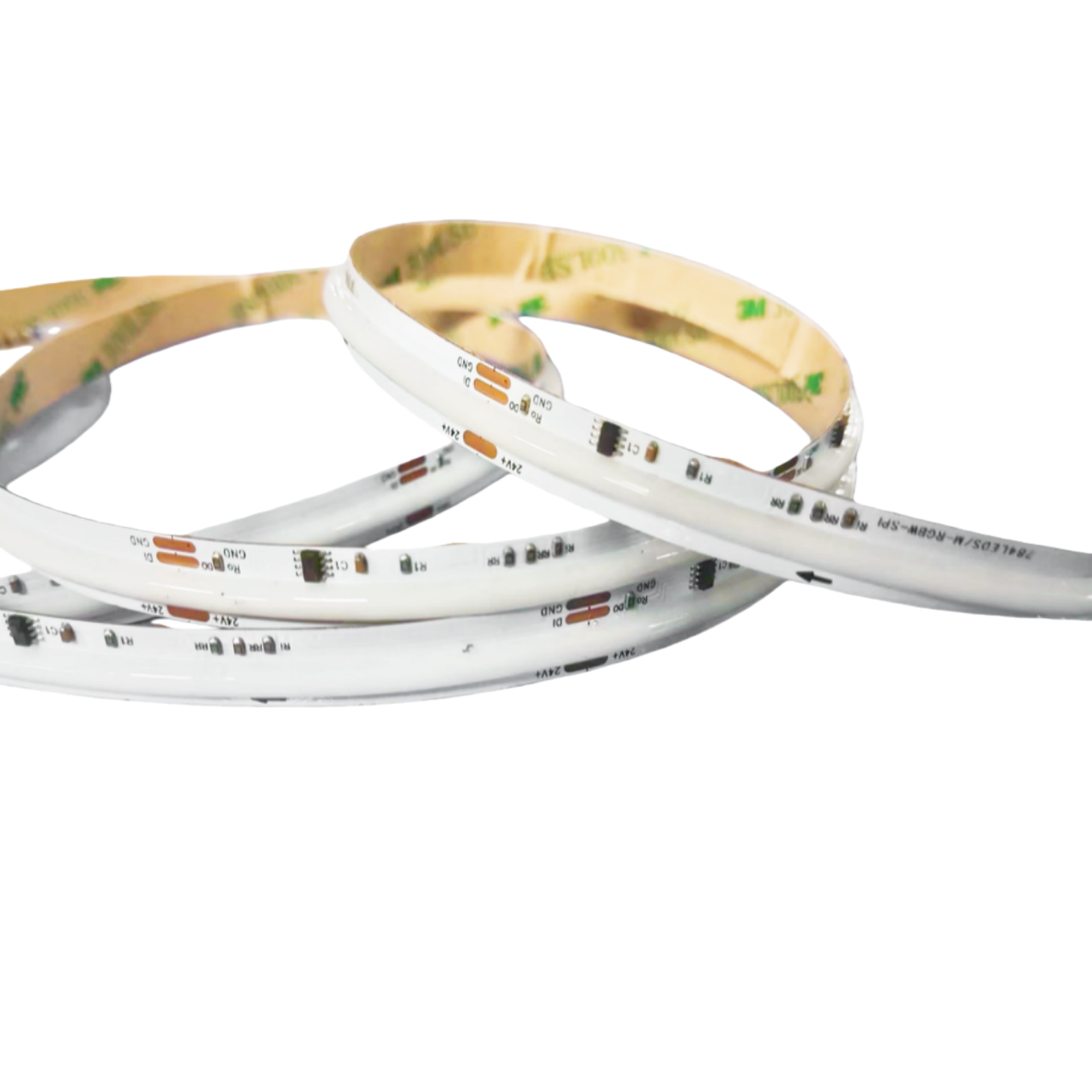

LUMSET® COB Addressable Strip | RGBW / RGBCW | 24V | IC Controlled

  • Voltage
    DC 24 V
  • Cutting Interval
    71.42 mm (24 V)
  • Power

    RGBW 784 - 21 W/m

    RGBW 840 - 24 W/m

  • PCB Width

    10 mm, 15 mm

Ask about this product

Intro description


− +
LUMSET® COB Addressable Strip | RGBW / RGBCW | 24V | IC Controlled (Parent: LS-COB-IC-24V-COLOR)
Common specs: LED Tech: COB Voltage: 24V Control: Addressable IC Cut: 71.42mm (C714) Supply: PB IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IC Model Encapsulation
COB · RGBW · 784 LEDs/m · 10mm · 24V · PB · C714 · WS2814 · 3000K 24V 10 mm 21 W/m RGBW (W=3000K) 71.42 mm WS2814 Bare PCB
COB · RGBW · 784 LEDs/m · 10mm · 24V · PB · C714 · WS2814 · 4000K 24V 10 mm 21 W/m RGBW (W=4000K) 71.42 mm WS2814 Bare PCB
COB · RGBW · 784 LEDs/m · 10mm · 24V · PB · C714 · WS2814 · 6500K 24V 10 mm 21 W/m RGBW (W=6500K) 71.42 mm WS2814 Bare PCB
COB · RGBCW · 840 LEDs/m · 15mm · 24V · PB · C714 · WS2805 · 3000K+6500K (3065) 24V 15 mm 26 W/m RGBCW (3000K+6500K) 71.42 mm WS2805 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).


Technical Specifications

Model / SKU Code
LS-COB-IC-24V-COLOR
Brand
LUMSET
Product Form
LED Strip
FPCB
Panelized
Current Type
Constant Voltage
Max Run Length (m)
5
Structure
Single Row
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

What does “addressable (IC controlled)” mean?

Each cut segment can be controlled independently to create chasing, gradient, and pixel effects, instead of one static color for the whole strip.

How do I choose WS2814 vs WS2805?

Select the IC model that matches your controller protocol and wiring method. Always confirm controller compatibility before ordering.

Can I cut and re-connect the strip?
Yes. Cut only at the marked 71.42 mm (C714) points, and follow proper addressable-strip wiring when soldering or using connectors.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

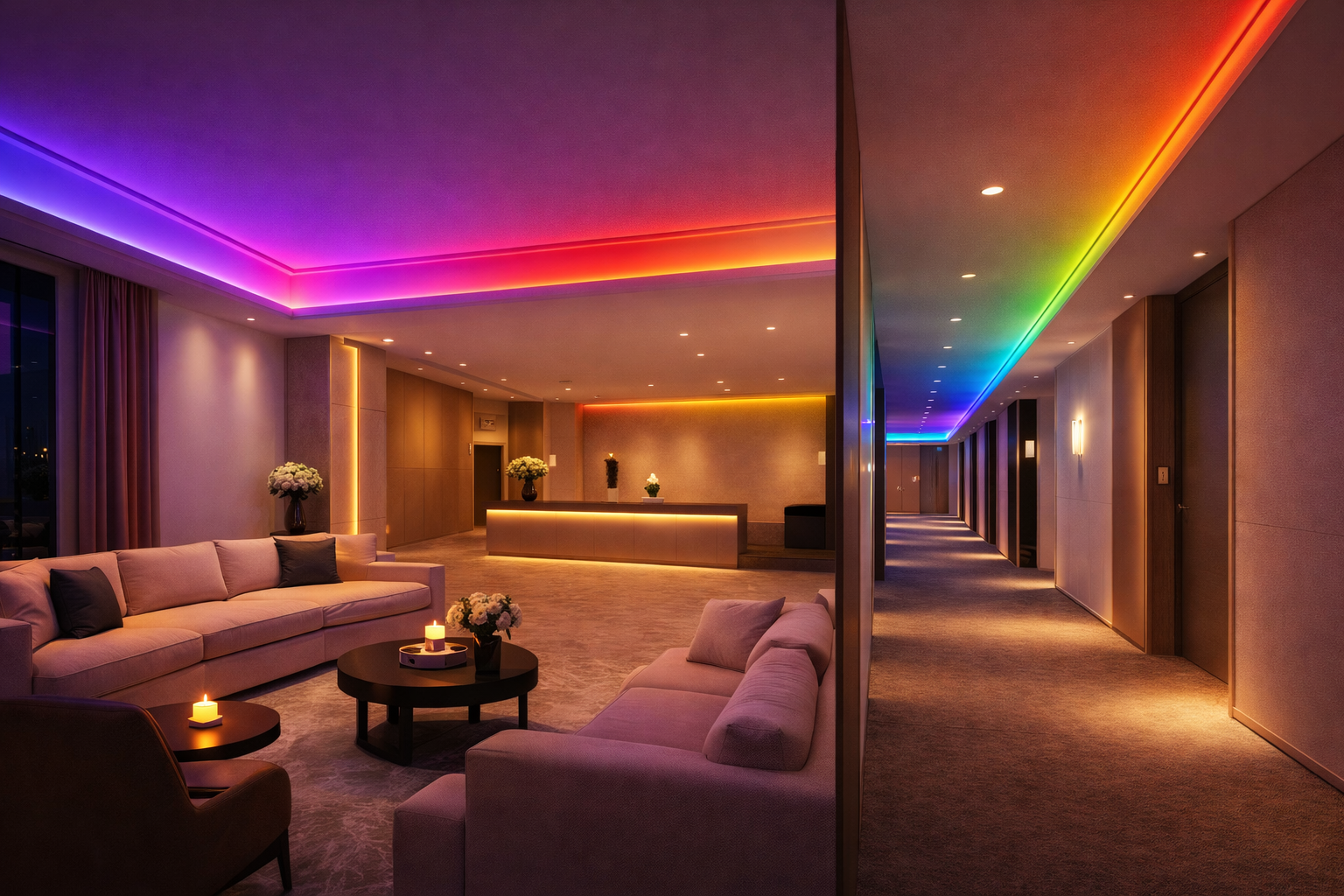

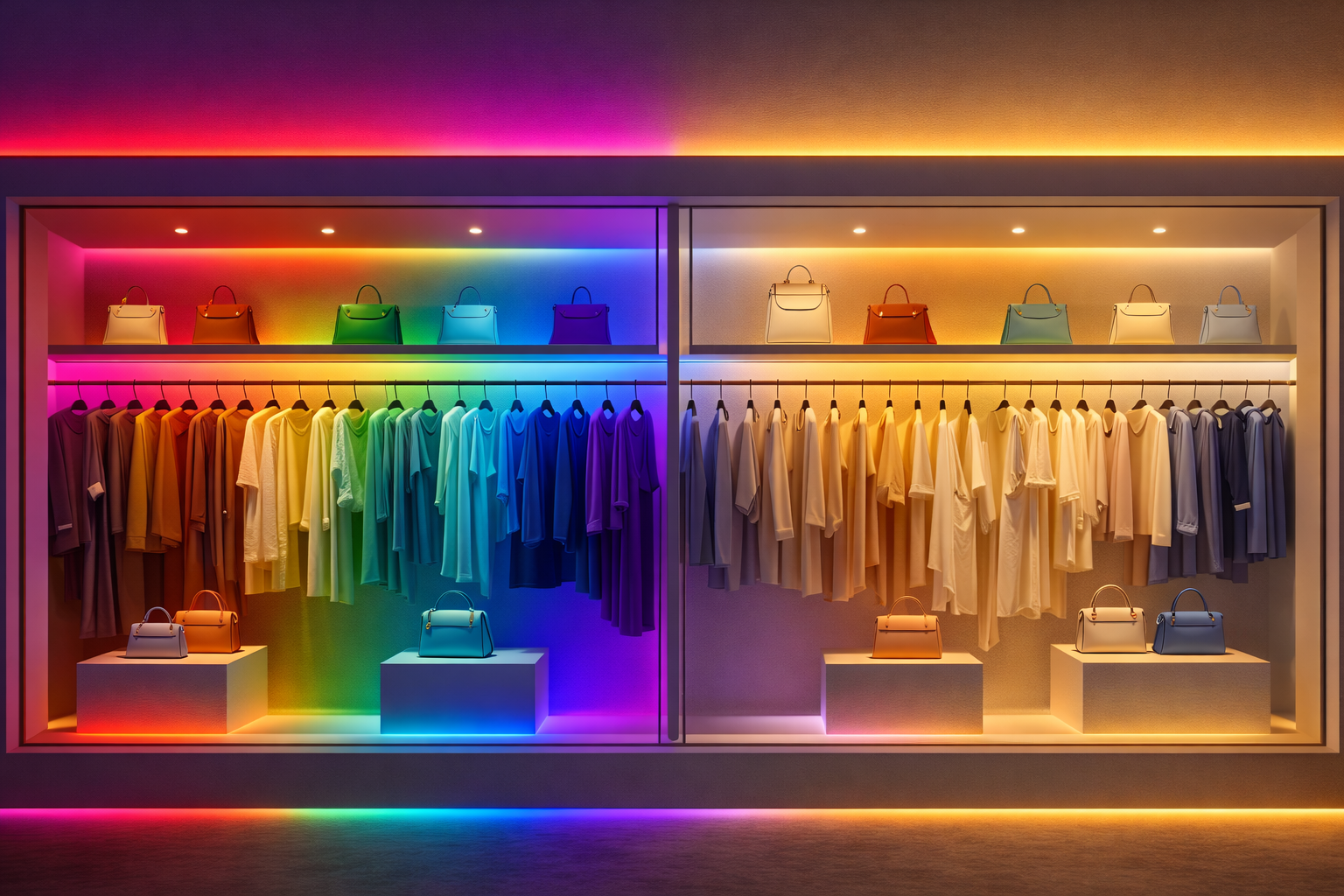

Ideal for dynamic architectural lighting and feature installations where programmable pixel effects are required. Common uses include hotel lobbies and corridors, retail display walls and window showcases, bars and entertainment venues, exhibition halls, and cove/slot lighting in ceilings or millwork. This 24V COB addressable series delivers a smooth, dot-free light line while enabling chasing, gradient, and scene animations via compatible controllers.
