Dual CCT 2700K–6500K,

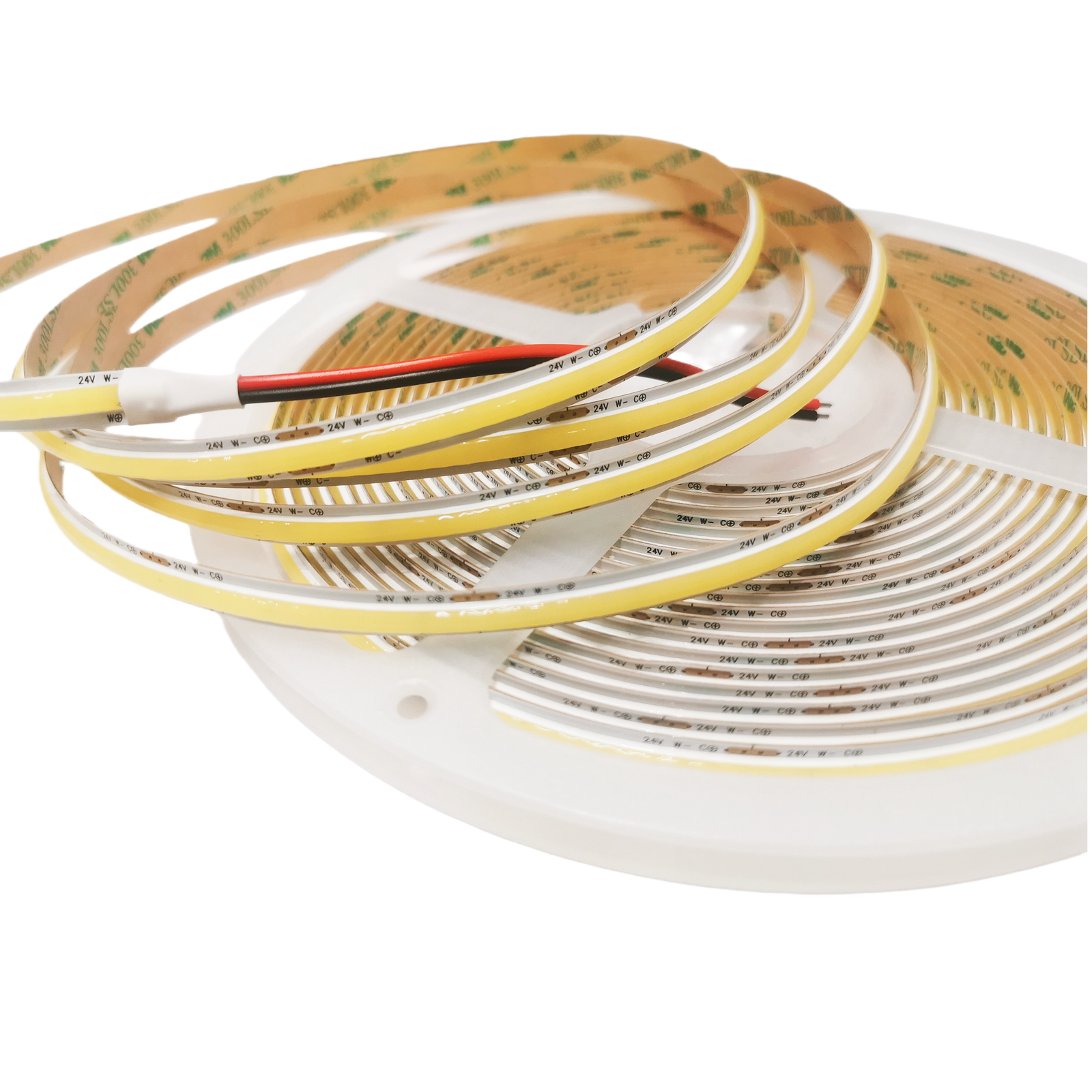

LUMSET® COB Dual CCT Strip | 576 LEDs/m | 8mm | 24V | CRI90+ | NP

  • Voltage
    DC 24 V
  • Cutting Interval
    41.66 mm (24 V)
  • Power
    10+10 (Max 20) (Dual CCT)
  • PCB Width
    8 mm
Ask about this product

Intro description


− +
LUMSET® COB Dual CCT Strip | 576 LEDs/m | 8mm | 24V | CRI90+ | NP (Model: LS-COB-DCC-576)
Common specs: LED Tech: COB LED Density: 576 LEDs/m PCB Width: 8mm Voltage: 24V Power: 10+10 W/m (20W/m) CCT: 2700K–6500K (2765) CRI (Ra): > 90 IP: IP20 Encapsulation: Dam / Bordered
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
SKU: LS-COB-DCC-576-8MM-24V-20W-C416-NP-2W-NVD-2765 · Dual CCT · 2-Wire · 10m No-Voltage-Drop · C416 24V 8 mm 10 + 10 W/m Tunable White (2700K–6500K) 41.66 mm IP20 Dam / Bordered
SKU: LS-COB-DCC-576-8MM-24V-20W-C208-NP-3W-2765 · Dual CCT · 3-Wire · C208 24V 8 mm 10 + 10 W/m Tunable White (2700K–6500K) 20.83 mm IP20 Dam / Bordered
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).
CCT code: 2765 = Tunable White 2700K–6500K.


Technical Specifications

Model / SKU Code
LS-COB-DCC-576
Brand
LUMSET
Product Form
LED Strip
FPCB
Non-Panelized
Current Type
Constant Voltage
Max Run Length (m)
10
LED Density (LEDs/m)
576
Adhesive
3M
Roll Length
10m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

What’s the difference between the 2-wire and 3-wire variants?
The 2-wire version is optimized for long runs and features 10m no-voltage-drop performance. The 3-wire version uses a different control wiring method and offers a different cutting interval, so please choose based on your controller and installation needs.
Which variant supports 10m no-voltage-drop?
Only the 24V 2-wire variant is designed for 10m no-voltage-drop. The 3-wire variant is a standard version.
What do C416 and C208 mean?
They are cut codes: C416 = 41.66 mm cutting interval, and C208 = 20.83 mm cutting interval. Always cut only at the marked cut points
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

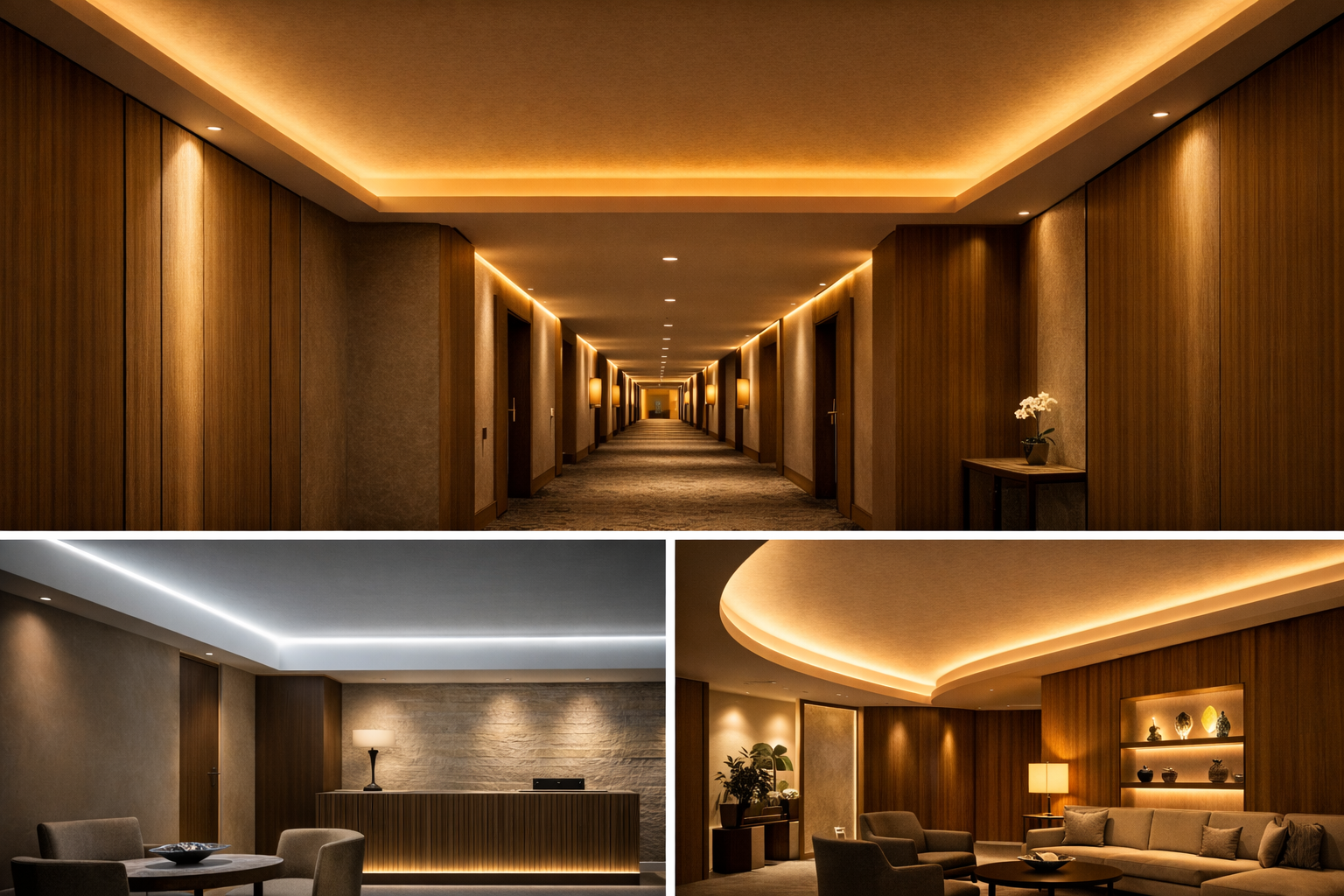

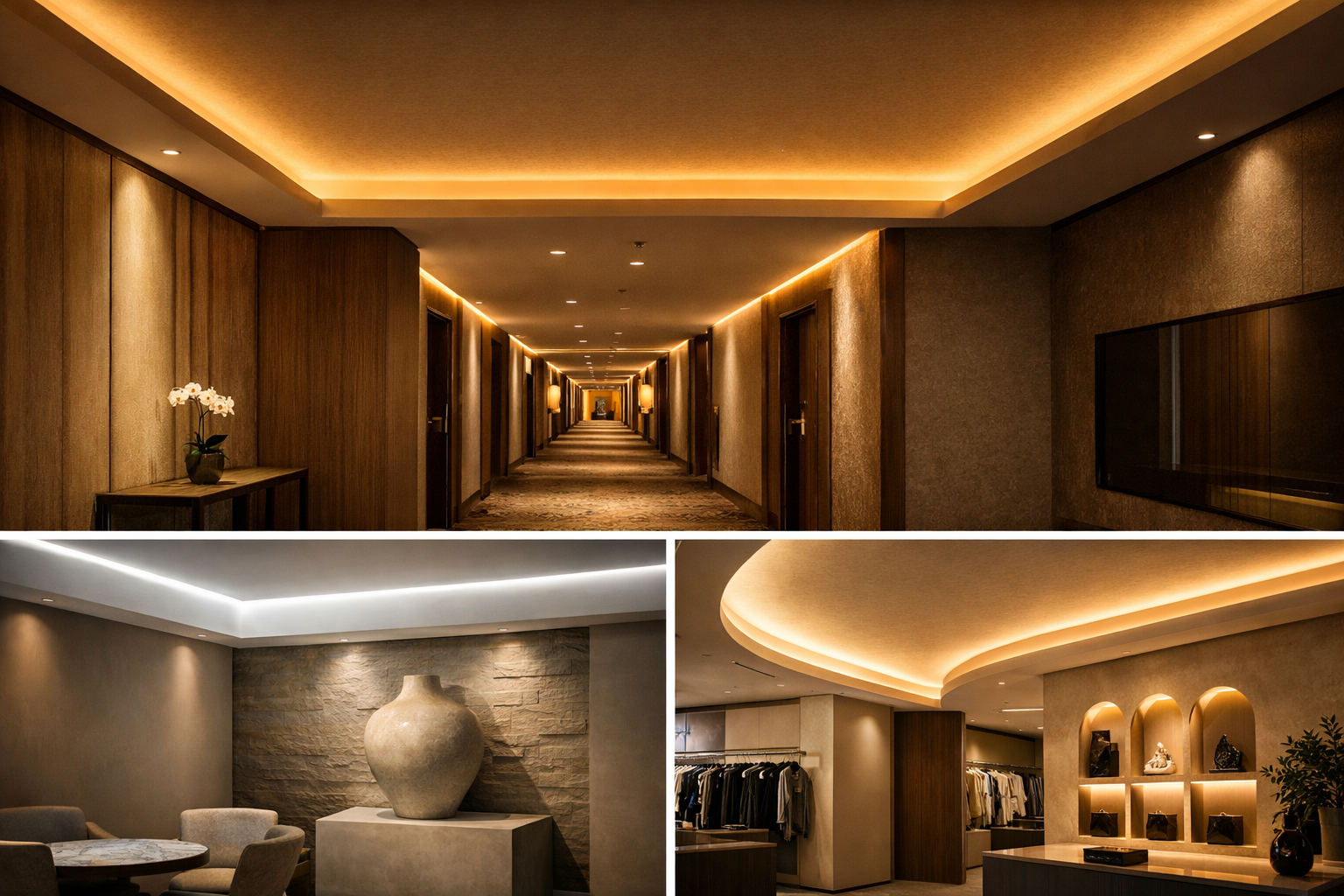

Ideal for hotel corridors and coves, showroom/perimeter cove lighting, retail feature lines, and other long-run architectural channels requiring a clean, dot-free COB light line with tunable white (2700K–6500K). Choose the 24V 2-wire (10m no-voltage-drop) variant for longer continuous runs with more consistent brightness, and use the 24V 3-wire variant when your project requires a different control wiring method and a finer cutting interval.
