Dual CCT 2700K–6500K,

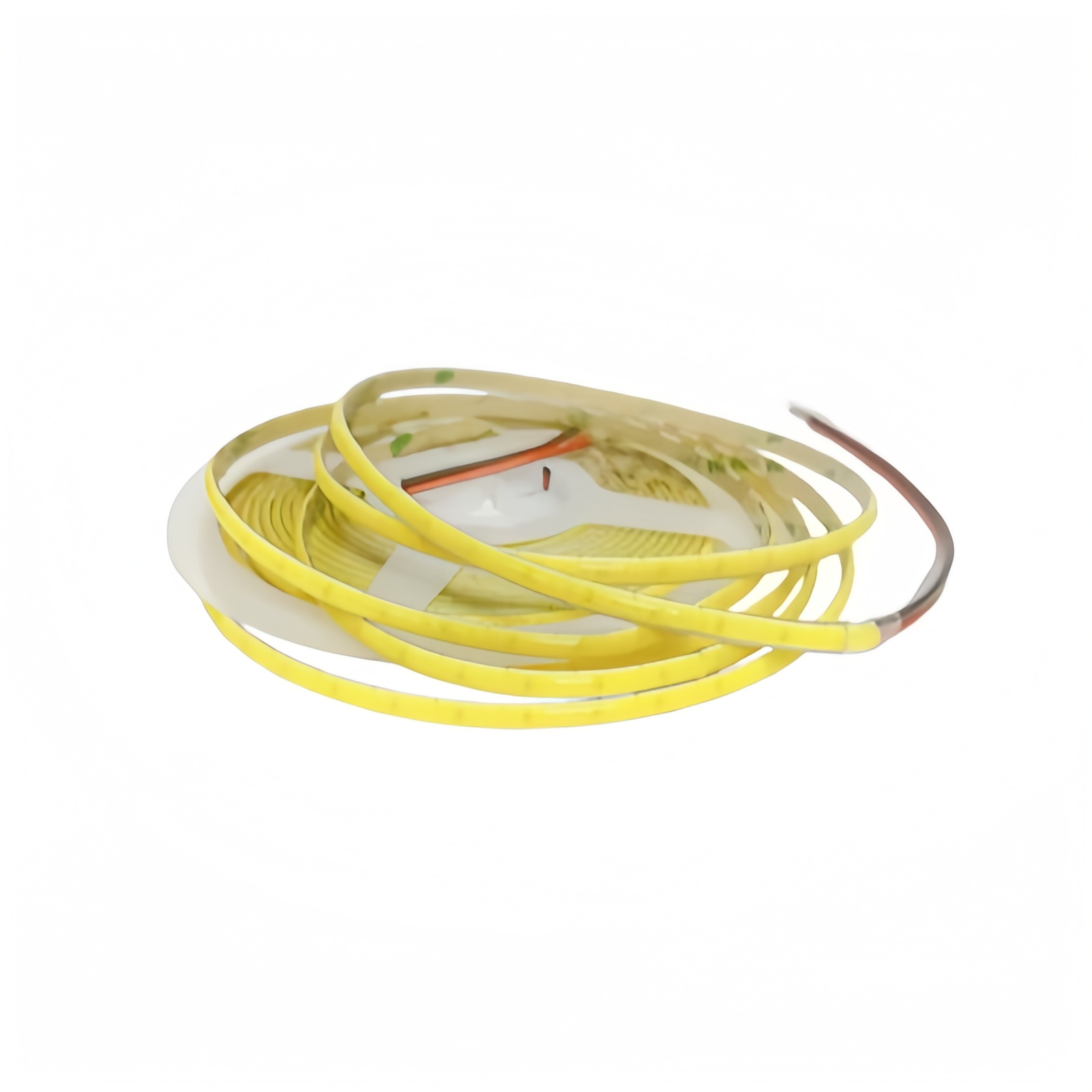

LUMSET® COB Dual CCT Strip | 2-Wire | 600 LEDs/m | CRI90+ | PB

  • Voltage
    DC 12 V / DC 24 V
  • Cutting Interval
    10 mm (12 V) / 20 mm (24 V)
  • Power
    7+7 (Max 14) (Dual CCT)
  • PCB Width
    5 mm, 8 mm
Ask about this product

Intro description


− +
LUMSET® COB Dual CCT Strip · 2-Wire · 600 LEDs/m · CRI90+ · PB Variants
Common specs: LED Tech: COB LED Density: 600 LEDs/m Wiring: 2-Wire Dual CCT Power: 7+7 W/m (14W/m) CRI (Ra): > 90 CCT Code: 2765 IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · Dual CCT · 2-Wire · 600 LEDs/m · 5mm · 12V · PB · SDCM < 3 · C100 · 2765 12V 5 mm 7 + 7 W/m Tunable White (2700K–6500K) 10 mm IP20 Bare PCB
COB · Dual CCT · 2-Wire · 600 LEDs/m · 5mm · 24V · PB · SDCM < 3 · C200 · 2765 24V 5 mm 7 + 7 W/m Tunable White (2700K–6500K) 20 mm IP20 Bare PCB
COB · Dual CCT · 2-Wire · 600 LEDs/m · 8mm · 12V · PB · SDCM < 3 · C100 · 2765 12V 8 mm 7 + 7 W/m Tunable White (2700K–6500K) 10 mm IP20 Bare PCB
COB · Dual CCT · 2-Wire · 600 LEDs/m · 8mm · 24V · PB · SDCM < 3 · C200 · 2765 24V 8 mm 7 + 7 W/m Tunable White (2700K–6500K) 20 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).
CCT code: 2765 = Tunable White 2700K–6500K.


Technical Specifications

Model / SKU Code
LS-COB-CCT2W-600
Brand
LUMSET
Product Form
LED Strip
FPCB
Panelized
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
600
Structure
Dual-CCT 2-wire
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

How does 2-wire Dual CCT work?
It uses a compatible Dual CCT controller to adjust brightness and shift the correlated color temperature across the tunable range.
What are the cutting intervals for 12V and 24V?
12V is cuttable every 10 mm (C100), and 24V is cuttable every 20 mm (C200). Always cut only at the marked cut points.
How do I choose between 5mm and 8mm PCB widths?
Choose 5mm for ultra-narrow channels and compact profiles, and 8mm when you want easier installation, stronger mechanical stability, or wider mounting space.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

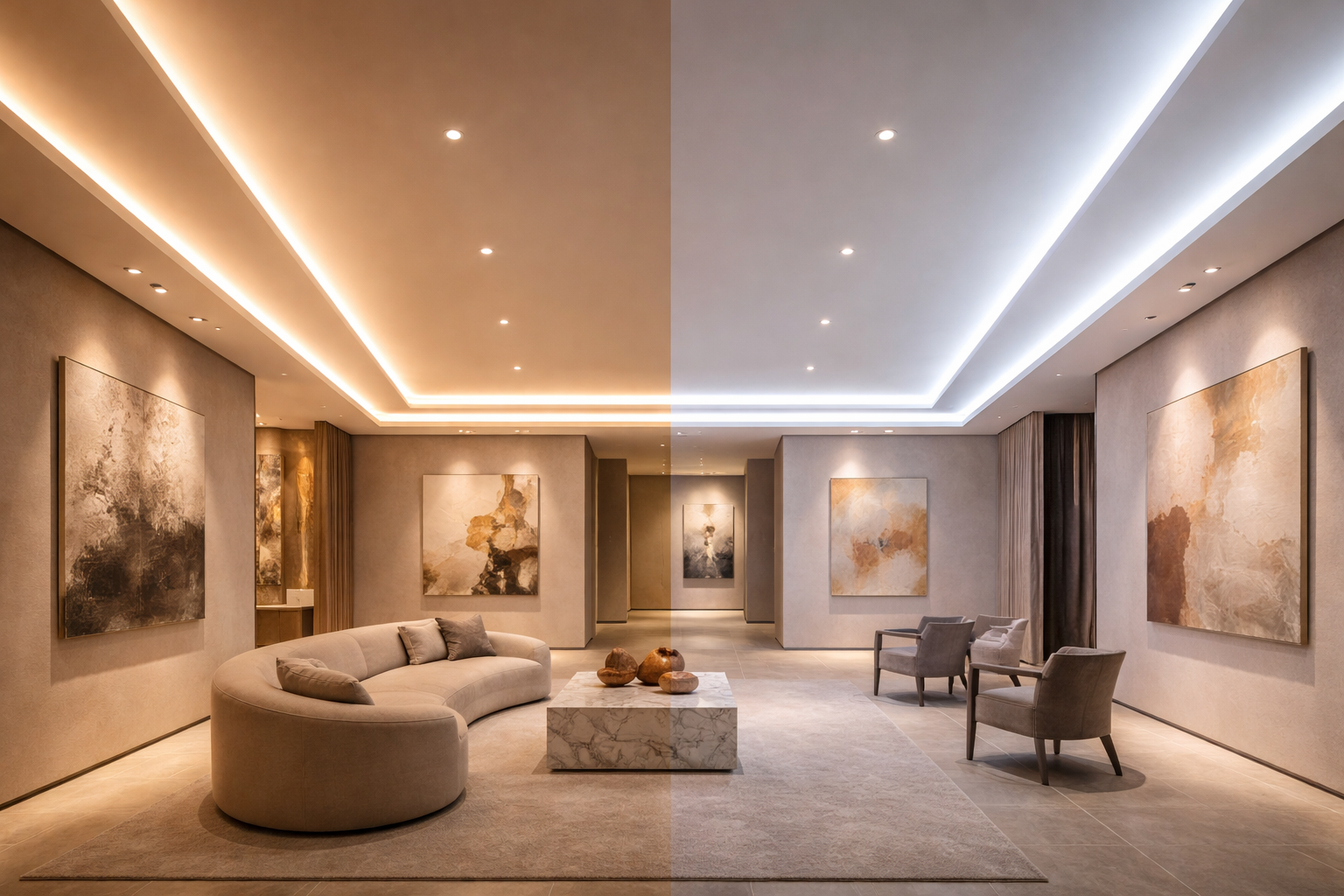

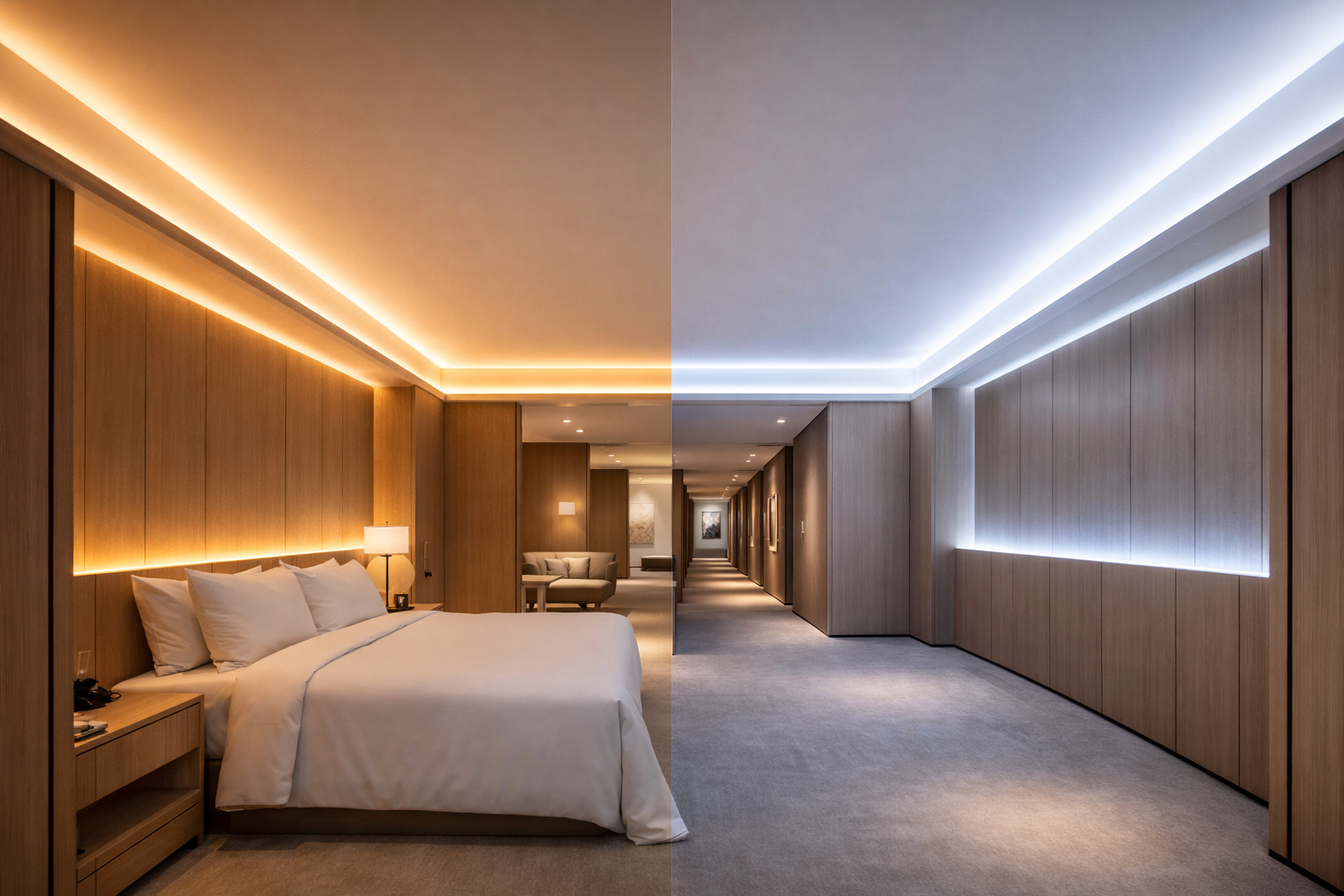

Ideal for architectural coves, hotel joinery and millwork, retail shelves and display cases, and clean linear accent channels where you need dot-free COB lighting plus tunable white (2700K–6500K). The 12V version offers finer cutting for compact layouts, while 24V is preferred for longer runs and system efficiency.
