Dual CCT 2700K–6500K,

LUMSET® COB Dual CCT Strip | 3-Wire | 624 LEDs/m | 24V | CRI90+ | 10m No-Voltage-Drop

  • Voltage
    DC 24 V
  • Cutting Interval
    19.23 mm (24 V)
  • Power
    7+7 (Max 14) (Dual CCT)
  • PCB Width
    8 mm, 10 mm
Ask about this product

Intro description


− +

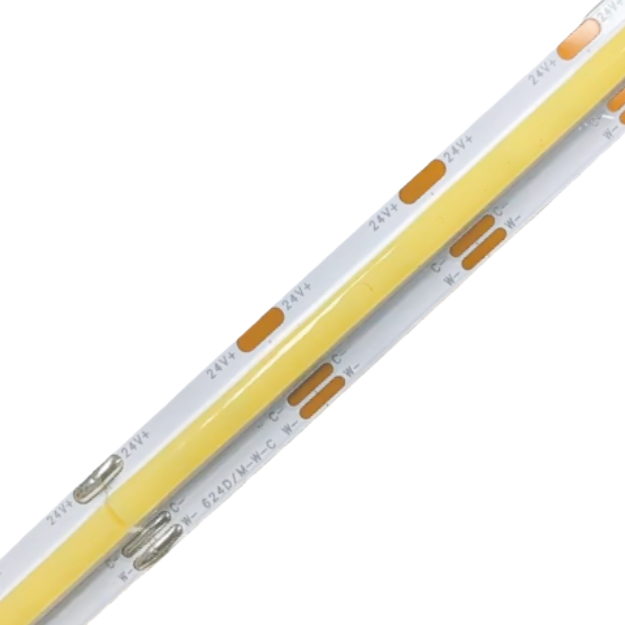

LUMSET® COB Dual CCT Strip · 3-Wire · 624 LEDs/m · 24V · CRI90+ · 10m No-Voltage-Drop
Common specs: LED Tech: COB LED Density: 624 LEDs/m Wiring: 3-Wire Dual CCT Voltage: 24V Power: 7+7 W/m (14W/m) CRI (Ra): > 90 CCT Code: 2765 Cut: 19.23mm (C192) Feature: 10m No-Voltage-Drop IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · Dual CCT · 3-Wire · 624 LEDs/m · 8mm · 24V · PB · SDCM < 3 · C192 · 2765 24V 8 mm 7 + 7 W/m Tunable White (2700K–6500K) 19.23 mm IP20 Bare PCB
COB · Dual CCT · 3-Wire · 624 LEDs/m · 10mm · 24V · PB · SDCM < 3 · C192 · 2765 24V 10 mm 7 + 7 W/m Tunable White (2700K–6500K) 19.23 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).
CCT code: 2765 = Tunable White 2700K–6500K.


Technical Specifications

Model / SKU Code
LS-COB-CCT3W-624
Brand
LUMSET
Product Form
LED Strip
FPCB
Panelized
Current Type
Constant Voltage
Max Run Length (m)
10
LED Density (LEDs/m)
624
Structure
Dual-CCT 3-wire
Adhesive
3M
Roll Length
10m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

How do I control Dual CCT (3-wire) on this strip?
Use a compatible 3-wire Dual CCT controller/dimmer to adjust brightness and shift CCT from 2700K to 6500K.
What is the cutting interval and cut code?
It is cuttable every 19.23 mm with cut code C192. Always cut only at the marked cut points.
What does “10m No-Voltage-Drop” mean?

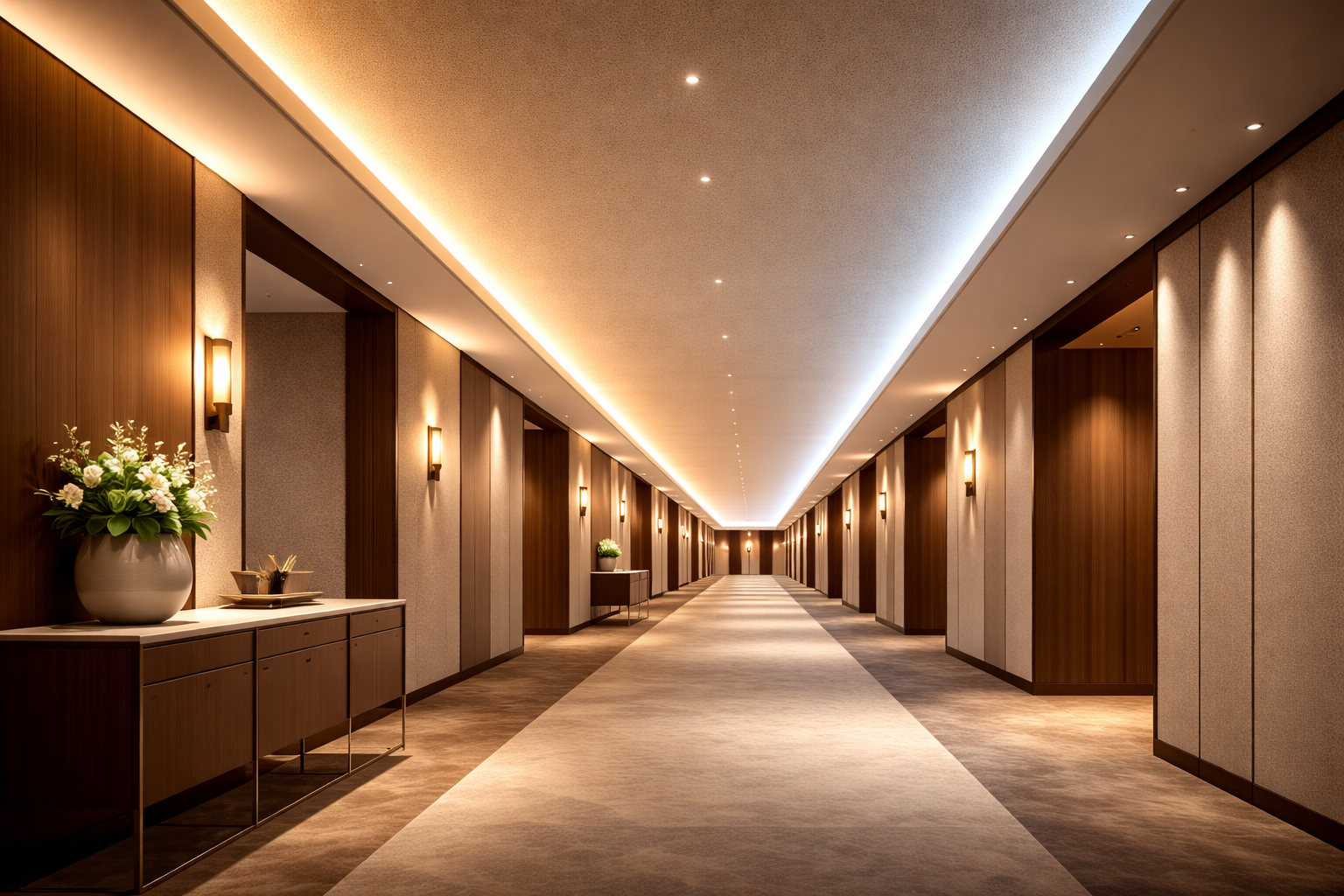

Ideal for hotel corridors and coves, retail perimeter lighting, showroom feature lines, and long-run architectural channels where you need tunable white (2700K–6500K) plus a clean COB light line with more consistent brightness over 10 meters.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

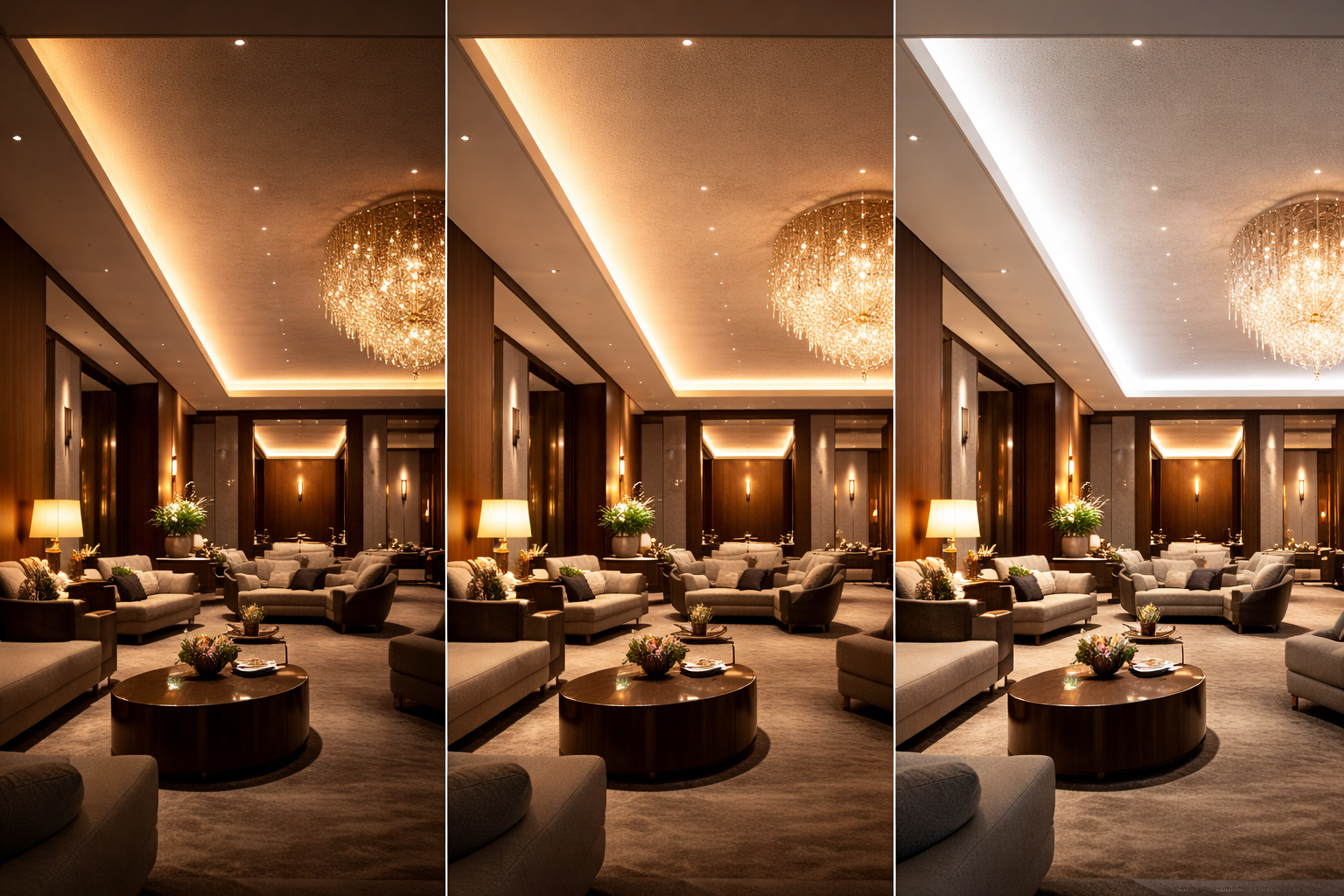

The 3-wire tunable-white COB strip is made for commercial spaces like hotel lobbies, boutiques, and cafés. One strip delivers warm, cool, and smooth mixed lighting—cooler tones for a clean, professional daytime look, and warmer tones for a premium, relaxing night ambience. COB continuous light output is uniform and dot-free, ideal for cove lighting, wall washing, shelves, and display cases. Switch scenes anytime to match traffic, time, or merchandising themes.
