Standard-Density COB

LUMSET® COB Strip | 320 LEDs/m | CRI90+

  • Voltage
    DC 12 V / DC 24 V
  • Cutting Interval
    25 mm (12 V) / 50 mm (24 V)
  • Power
    8 W/m
  • PCB Width
    8 mm
Ask about this product

Intro description


− +

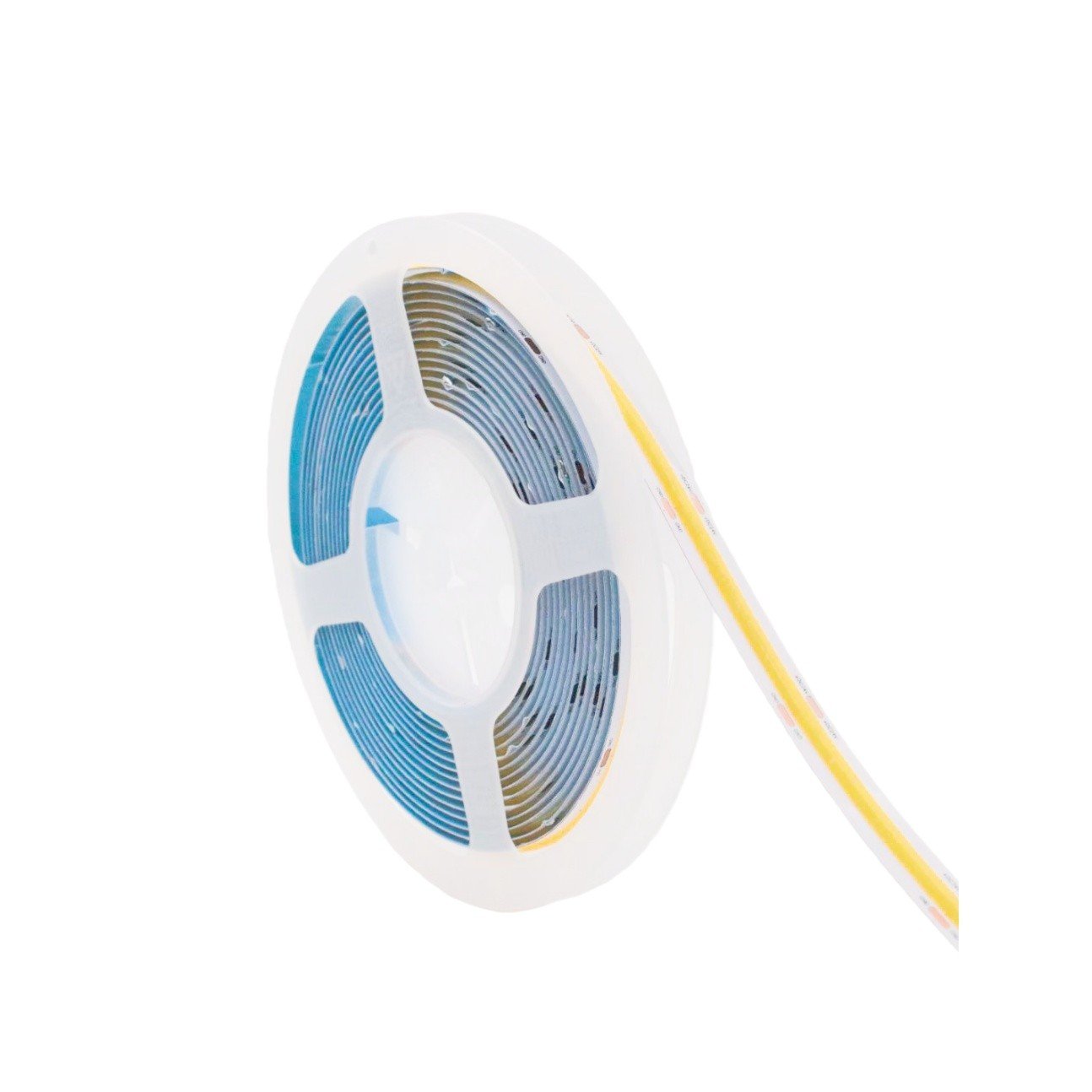

LUMSET® COB Strip · 320 LEDs/m · CRI90+ · 8mm Variants
Common specs: LED Tech: COB LED Density: 320 LEDs/m CRI (Ra): > 90 PCB Width: 8mm Power: 8W/m CCT: 2700/3000/4000/6500K IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · 320 LEDs/m · 8mm · 12V · NP · SDCM < 5 12V 8 mm 8 W/m 2700K / 3000K / 4000K / 6500K 25 mm IP20 Bare PCB
COB · 320 LEDs/m · 8mm · 24V · NP · SDCM < 5 24V 8 mm 8 W/m 2700K / 3000K / 4000K / 6500K 50 mm IP20 Bare PCB
COB · 320 LEDs/m · 8mm · 12V · PB · SDCM < 3 12V 8 mm 8 W/m 2700K / 3000K / 4000K / 6500K 25 mm IP20 Bare PCB
COB · 320 LEDs/m · 8mm · 24V · PB · SDCM < 3 24V 8 mm 8 W/m 2700K / 3000K / 4000K / 6500K 50 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).


Technical Specifications

Model / SKU Code
LS-COB-320-CRI90
Brand
LUMSET
Product Form
LED Strip
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
320
Structure
Single Row
Adhesive
Standard Adhesive
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

What’s the difference between NP and PB supply types?
NP means roll-to-roll (non-panelized) continuous strip. PB means panelized spliced boards, supplied in joined segments for easier handling in some production workflows.
What is the cutting interval for 12V and 24V versions?
The 12V version is cuttable every 25 mm. The 24V version is cuttable every 50 mm. Always cut only at the marked cut points.
Which color temperatures are available?
This series supports 2700K / 3000K / 4000K / 6500K, allowing you to choose from warm white to cool white for different lighting environments.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

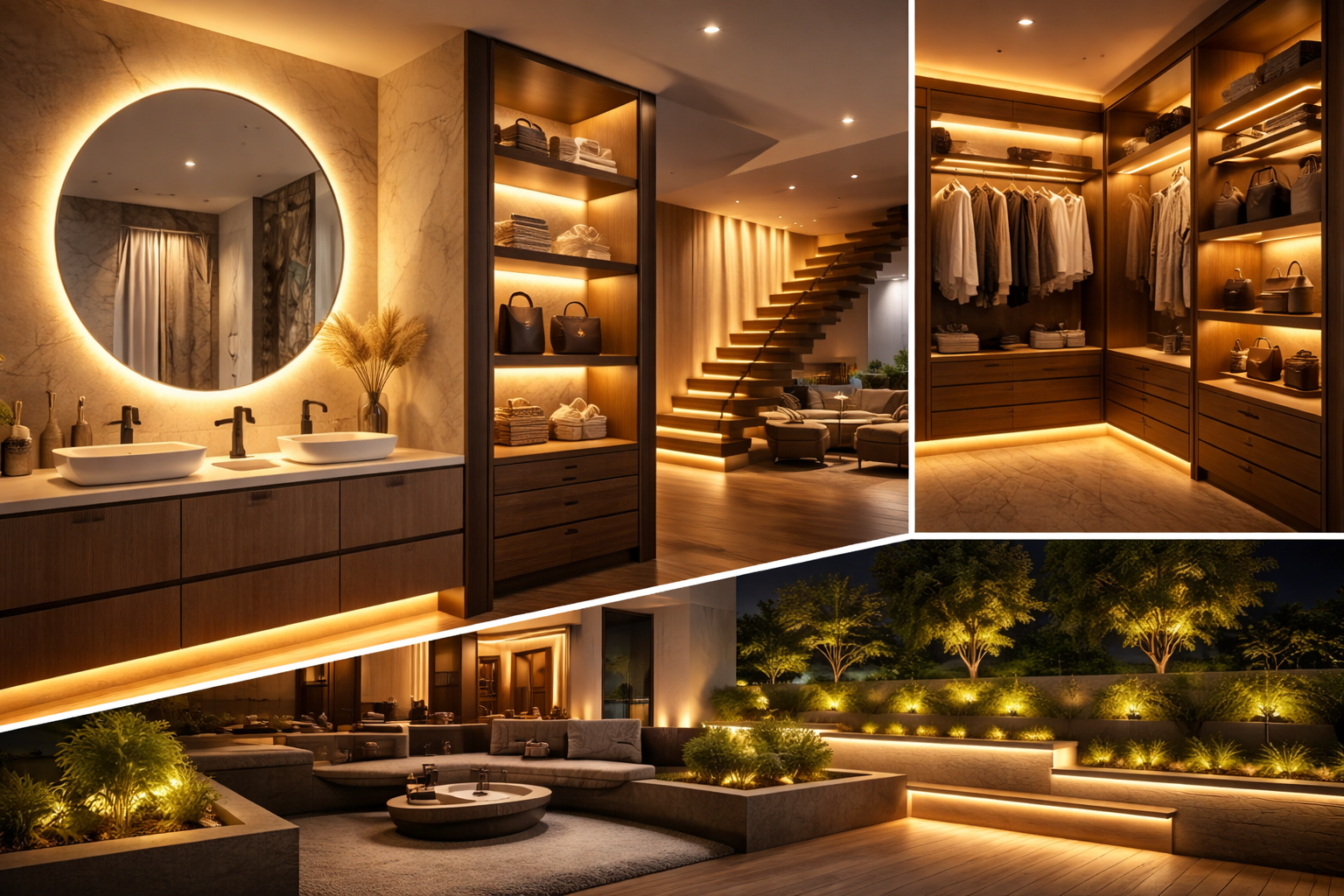

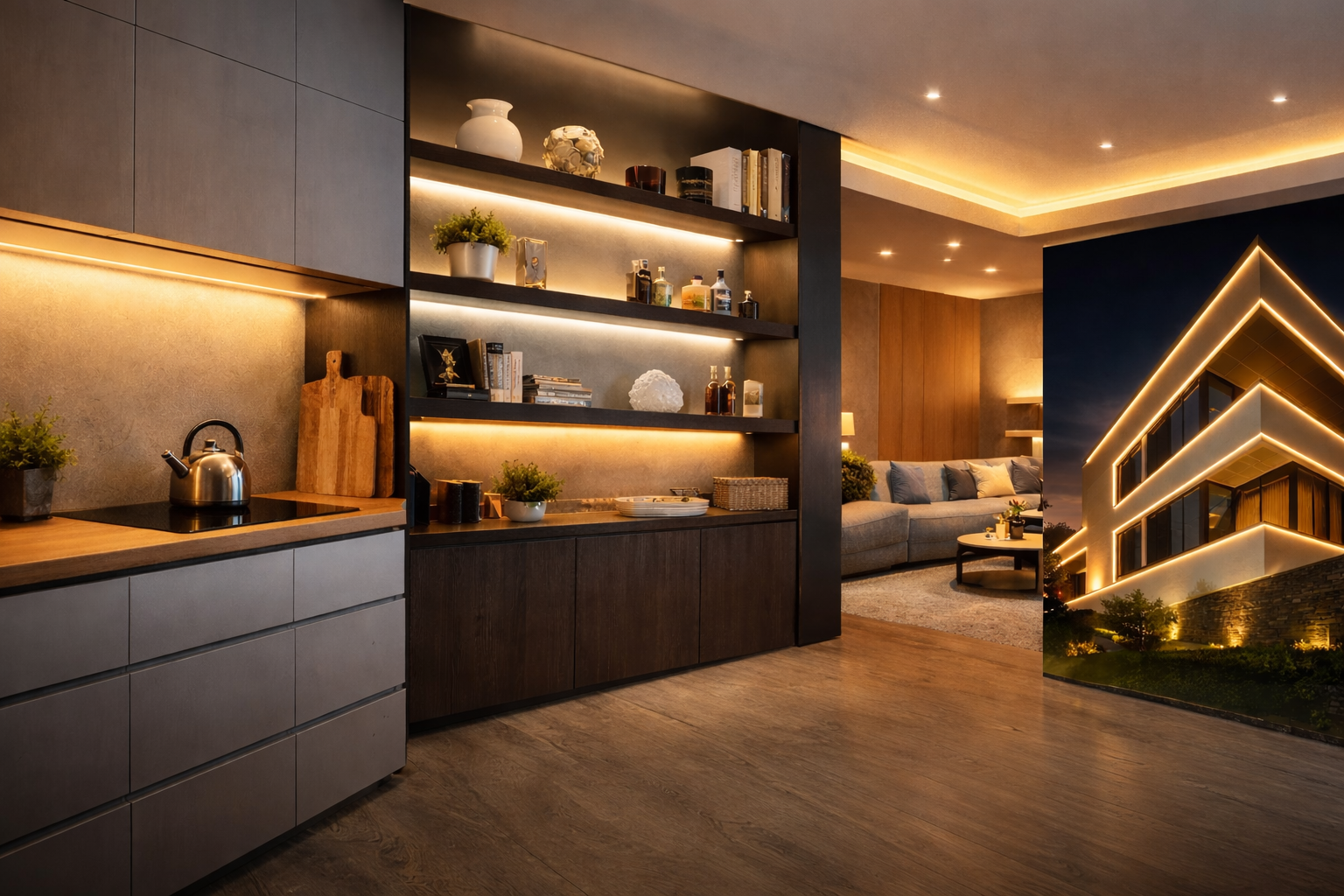

The LUMSET® COB Strip (320 LEDs/m, 8mm, CRI90+) is ideal for smooth, dot-free linear lighting in residential and commercial interiors. It works well for under-cabinet task lighting, shelf and showcase accents, cove lighting, and architectural outline details where a clean, continuous light line is required. With 2700K–6500K options, it fits warm ambient scenes and crisp functional lighting. Choose NP (roll-to-roll) for standard continuous-roll installations, or PB (panelized) when spliced-board handling and tighter color consistency (SDCM < 3) are preferred in project workflows.
