No-Voltage-Drop COB Strip

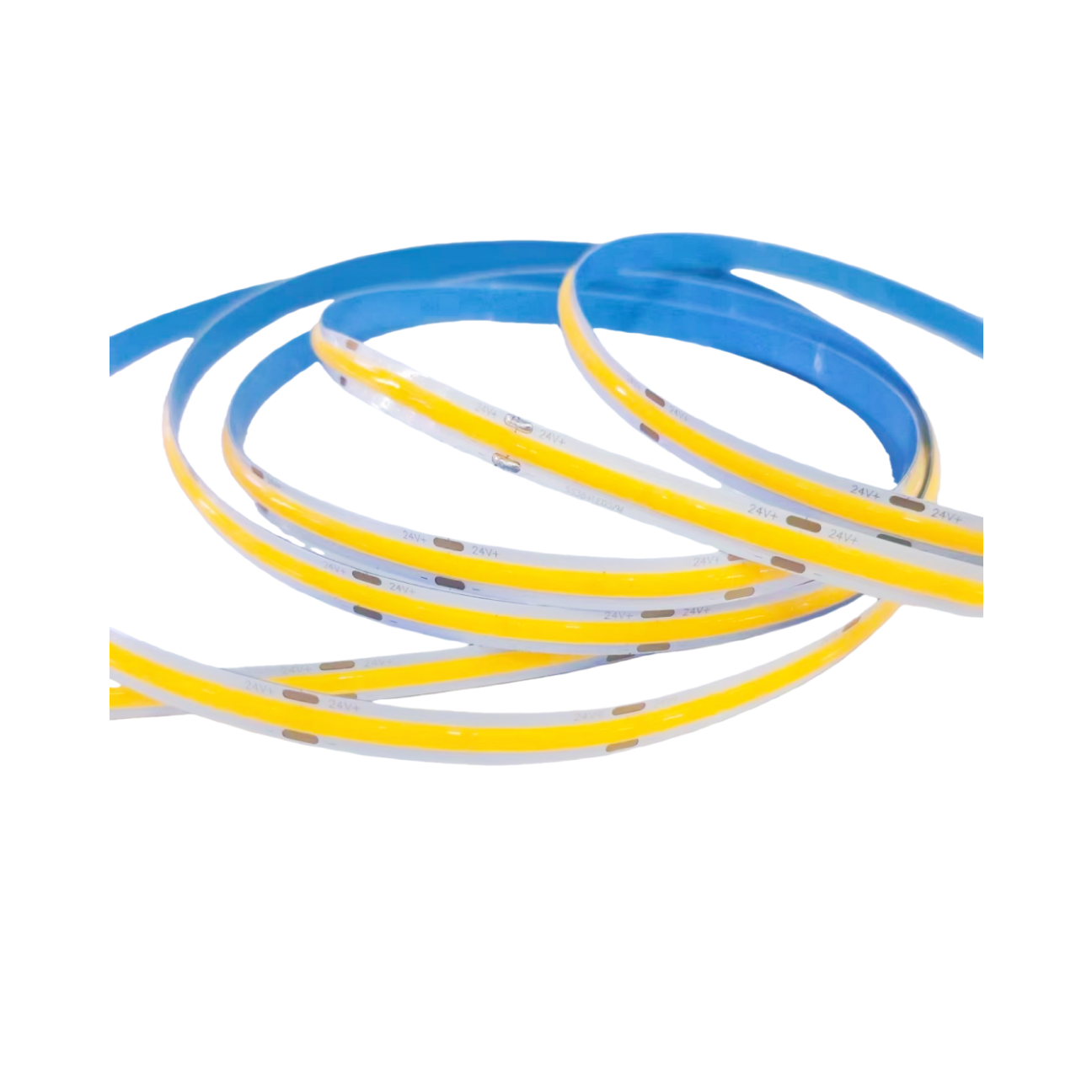

LUMSET® COB Strip | 384 LEDs/m | 24V | CRI90+ | 10m No-Voltage-Drop

  • Voltage
    DC 24 V
  • Cutting Interval
    31.25 mm (24 V)
  • Power
    10 W/m
  • PCB Width
    8 mm, 10 mm
Ask about this product

Intro description


− +
LUMSET® COB Strip · 384 LEDs/m · 24V · CRI90+ · 10m No-Voltage-Drop Variants
Common specs: LED Tech: COB LED Density: 384 LEDs/m Voltage: 24V Power: 10W/m CRI (Ra): > 90 Cut: 31.25mm (C312) Feature: 10m No-Voltage-Drop IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · 384 LEDs/m · 8mm · 24V · NP · SDCM < 5 · C312 24V 8 mm 10 W/m 2700K / 3000K / 4000K / 6500K 31.25 mm IP20 Bare PCB
COB · 384 LEDs/m · 8mm · 24V · PB · SDCM < 3 · C312 24V 8 mm 10 W/m 2700K / 3000K / 4000K / 6500K 31.25 mm IP20 Bare PCB
COB · 384 LEDs/m · 10mm · 24V · PB · SDCM < 3 · C312 24V 10 mm 10 W/m 2700K / 3000K / 4000K / 6500K 31.25 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).


Technical Specifications

Model / SKU Code
LS-COB-384-NVD-CRI90
Brand
LUMSET
Product Form
LED Strip
Current Type
Constant Voltage
Max Run Length (m)
10
LED Density (LEDs/m)
384
Structure
Single Row
Adhesive
Standard Adhesive
Roll Length
10m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

What does “10m No-Voltage-Drop” mean for this 24V strip?
It indicates the strip is designed to maintain more consistent brightness along a longer run, helping reduce visible dimming across the length in typical installations.
What’s the cutting interval and cut code for this series?
This series is cuttable every 31.25 mm, with cut code C312. Always cut only at the marked cut points.
What’s the difference between NP and PB supply types?
NP is roll-to-roll (non-panelized) continuous strip, listed as SDCM < 5. PB is panelized spliced boards, listed as SDCM < 3 for tighter color consistency and easier segment handling in project workflows.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

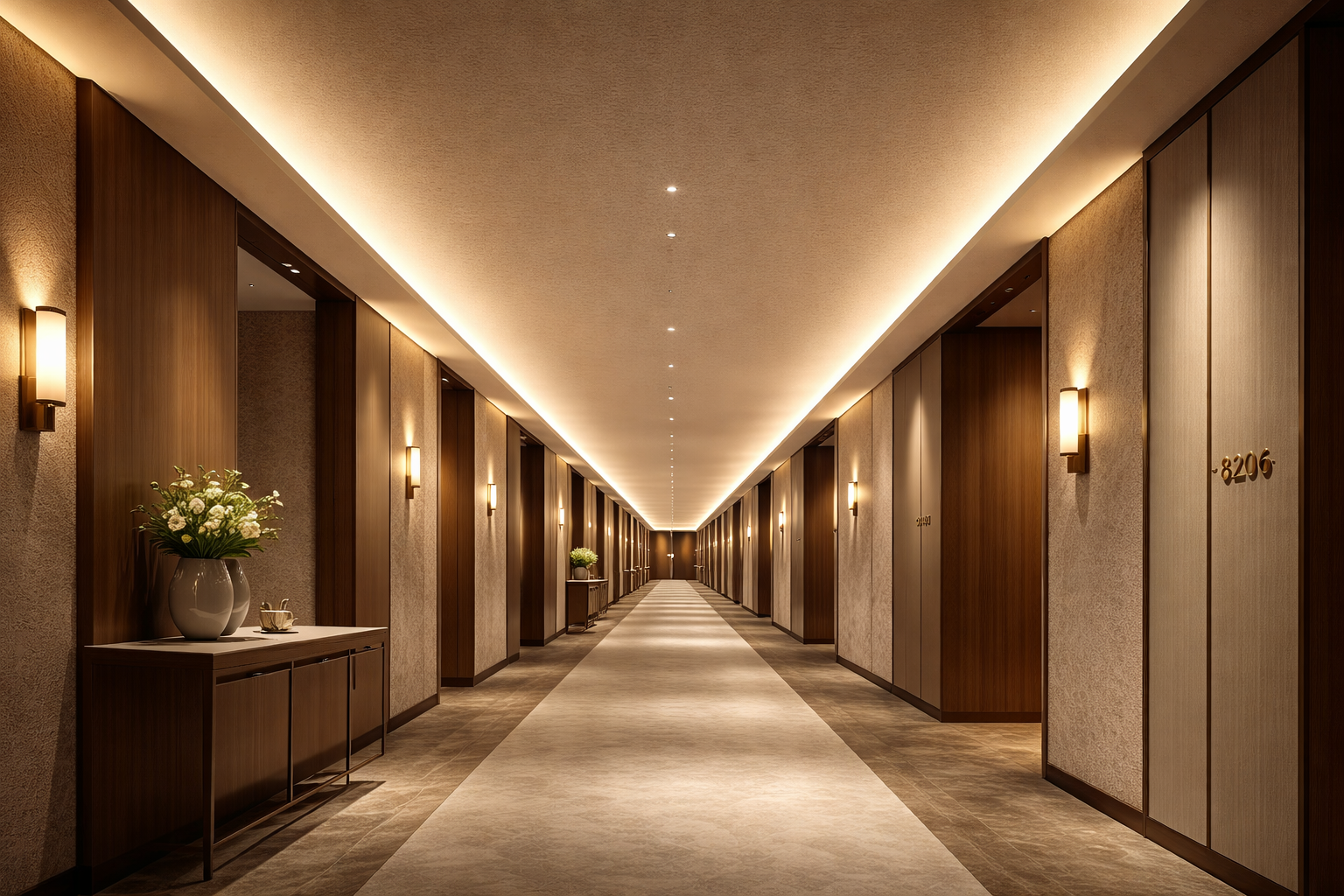

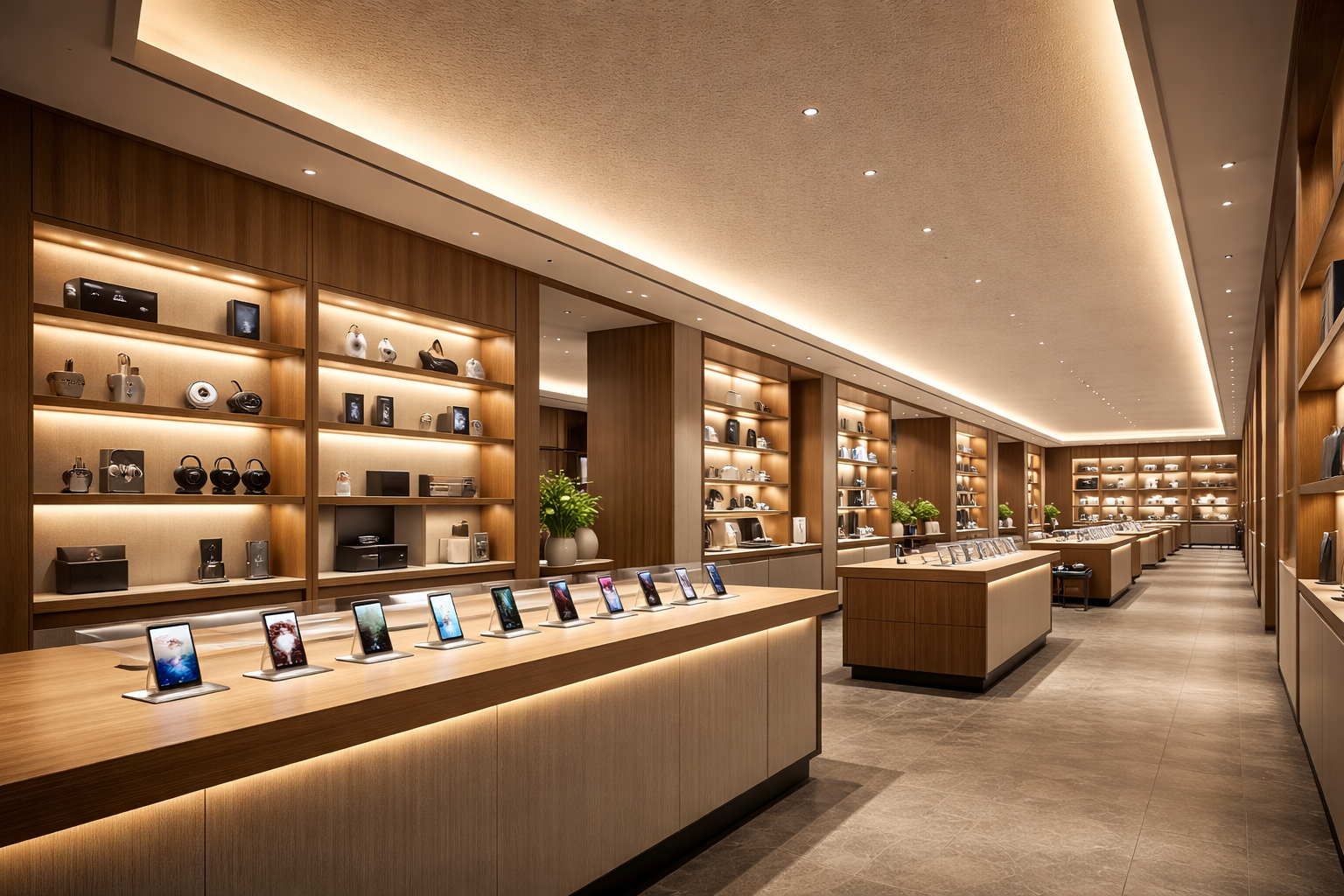

The LUMSET® COB Strip (384 LEDs/m, 24V, 10W/m, CRI90+, 10m No-Voltage-Drop) is ideal for long-run linear lighting where consistent brightness is critical. It fits well in hotel corridors, retail ceiling coves, showroom perimeter lines, commercial shelving and display cases, and architectural accent channels that require a clean, dot-free light line with minimal brightness drop across extended lengths. With 2700K / 3000K / 4000K / 6500K options, it supports both warm ambience and crisp functional lighting. Choose NP (roll-to-roll, SDCM < 5) for continuous installations, or PB (panelized, SDCM < 3) when tighter color consistency and easier segment handling are preferred for project workflows.
