Standard-Density COB

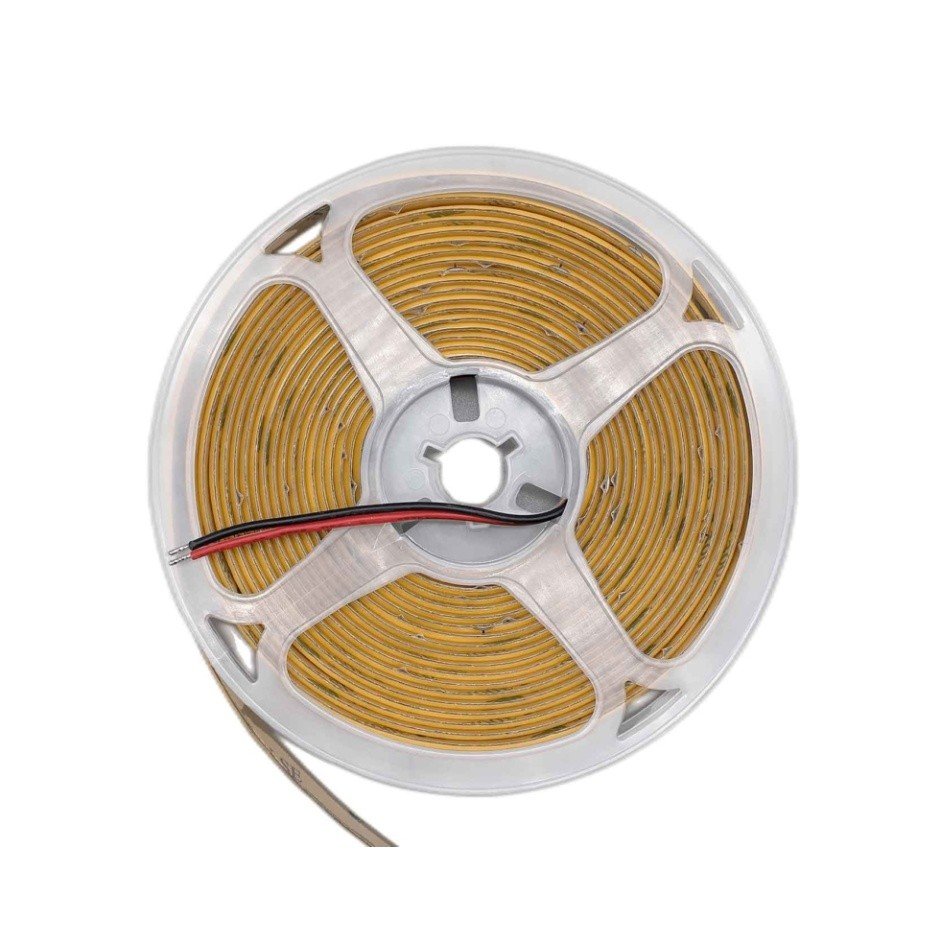

LUMSET® COB Strip | 480 LEDs/m | CRI90+

  • Voltage
    DC 12 V / DC 24 V
  • Cutting Interval
    25 mm (12 V) / 50 mm (24 V)
  • Power
    NP · 10.5 W/m / PB · 11 W/m
  • PCB Width
    8 mm
Ask about this product

Intro description


− +
LUMSET® COB Strip · 480 LEDs/m · CRI90+ · 8mm Variants
Common specs: LED Tech: COB LED Density: 480 LEDs/m CRI (Ra): > 90 PCB Width: 8mm CCT: 2700/3000/4000/6500K IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · 480 LEDs/m · 8mm · 12V · NP · SDCM < 5 12V 8 mm 10.5 W/m 2700K / 3000K / 4000K / 6500K 25 mm IP20 Bare PCB
COB · 480 LEDs/m · 8mm · 24V · NP · SDCM < 5 24V 8 mm 10.5 W/m 2700K / 3000K / 4000K / 6500K 50 mm IP20 Bare PCB
COB · 480 LEDs/m · 8mm · 12V · PB · SDCM < 3 12V 8 mm 11 W/m 2700K / 3000K / 4000K / 6500K 25 mm IP20 Bare PCB
COB · 480 LEDs/m · 8mm · 24V · PB · SDCM < 3 24V 8 mm 11 W/m 2700K / 3000K / 4000K / 6500K 50 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).


Technical Specifications

Model / SKU Code
LS-COB-480-CRI90
Brand
LUMSET
Product Form
LED Strip
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
480
Structure
Single Row
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

Why do NP and PB have different power ratings (10.5W/m vs 11W/m)?
They are supplied in different formats and production structures, which can result in slightly different measured power. Please select the variant exactly as listed in the table for consistent project specifications.
What is the cutting interval for 12V and 24V versions?
The 12V version is cuttable every 25 mm. The 24V version is cuttable every 50 mm. Always cut only at the marked cut points.
What’s the difference between NP and PB supply types?
NP means roll-to-roll (non-panelized) continuous strip and is listed as SDCM < 5. PB means panelized spliced boards and is listed as SDCM < 3 for tighter color consistency.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

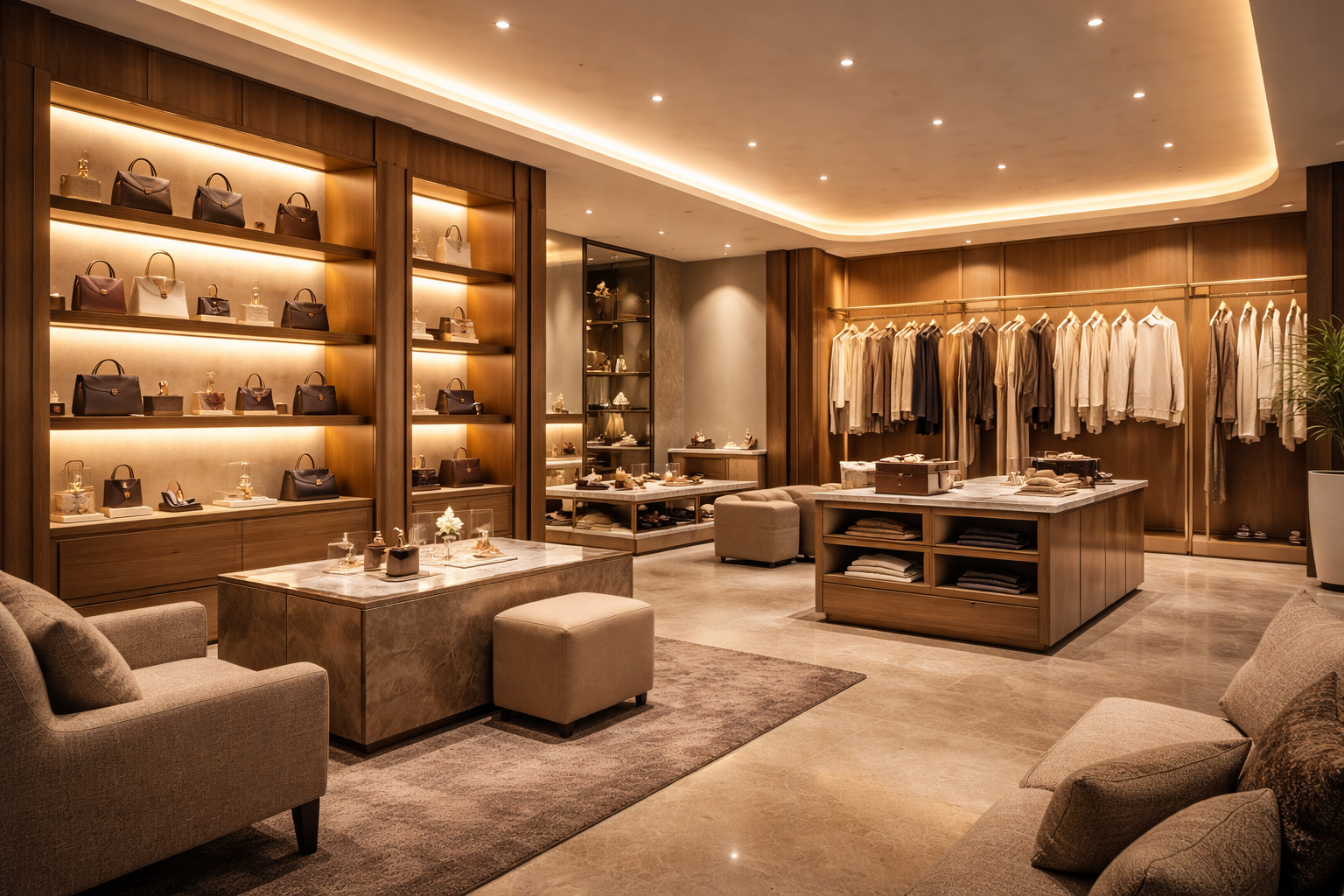

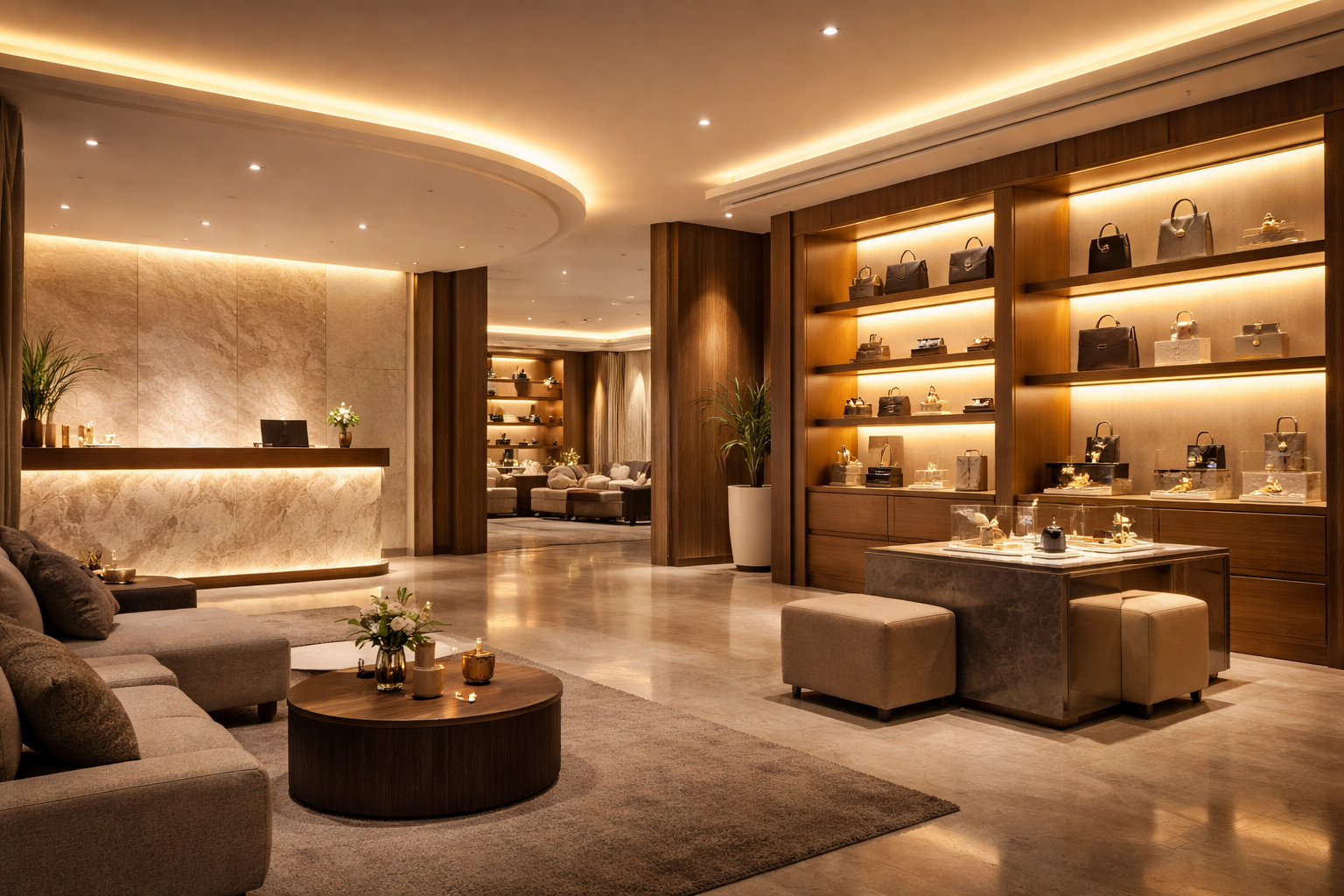

Applications The LUMSET® COB Strip (480 LEDs/m, 8mm, CRI90+) is designed for smooth, dot-free linear lighting where higher LED density delivers a more continuous light line. It is suitable for under-cabinet task lighting, shelf and display illumination, cove lighting, and architectural accent lines in residential, retail, and hospitality interiors. With 2700K–6500K options, it supports both warm ambient lighting and crisp functional white. Choose NP (roll-to-roll, SDCM < 5) for standard continuous-roll installations, or PB (panelized, SDCM < 3) when tighter color consistency and easier segment handling are preferred for project workflows.
