Standard-Density COB

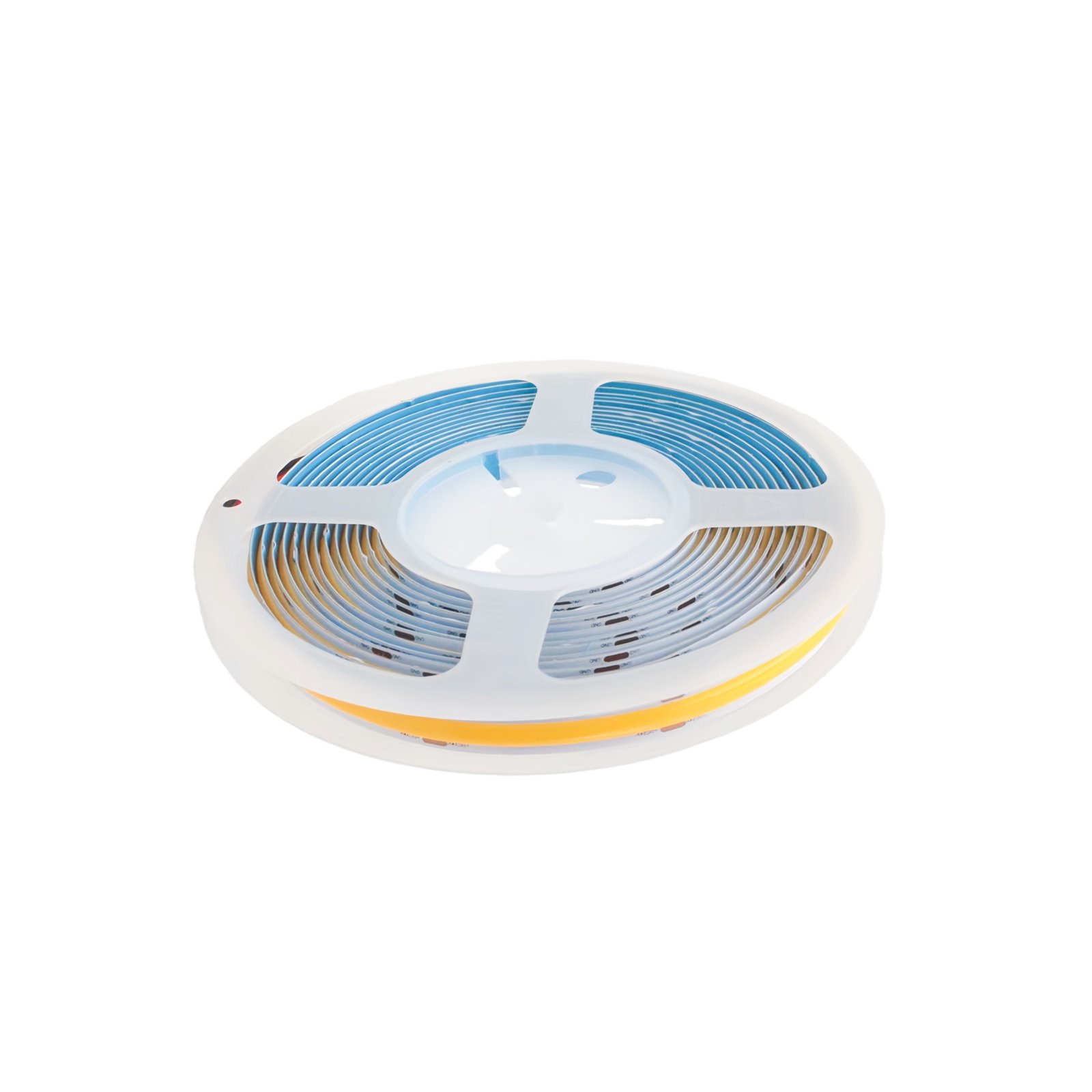

LUMSET® COB Strip | 528 LEDs/m | CRI90+

  • Voltage
    DC 12 V / DC 24 V
  • Cutting Interval
    22.73 mm (12 V) / 45.45 mm (24 V)
  • Power
    14 W/m
  • PCB Width
    10 mm
Ask about this product

Intro description


− +
LUMSET® COB Strip · 528 LEDs/m · CRI90+ · 10mm Variants
Common specs: LED Tech: COB LED Density: 528 LEDs/m CRI (Ra): > 90 PCB Width: 10mm Power: 14W/m CCT: 2700/3000/4000/6500K IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · 528 LEDs/m · 10mm · 12V · NP · SDCM < 5 · C227 12V 10 mm 14 W/m 2700K / 3000K / 4000K / 6500K 22.73 mm IP20 Bare PCB
COB · 528 LEDs/m · 10mm · 24V · NP · SDCM < 5 · C454 24V 10 mm 14 W/m 2700K / 3000K / 4000K / 6500K 45.45 mm IP20 Bare PCB
COB · 528 LEDs/m · 10mm · 12V · PB · SDCM < 3 · C454 12V 10 mm 14 W/m 2700K / 3000K / 4000K / 6500K 45.45 mm IP20 Bare PCB
COB · 528 LEDs/m · 10mm · 24V · PB · SDCM < 3 · C454 24V 10 mm 14 W/m 2700K / 3000K / 4000K / 6500K 45.45 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).


Technical Specifications

Model / SKU Code
LS-COB-528-CRI90
Brand
LUMSET
Product Form
LED Strip
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
528
Structure
Single Row
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

Why does the PB version use the same cutting interval for both 12V and 24V?
The panelized (PB) version is supplied in spliced-board segments with a fixed cutting design, so both voltages follow the same 45.45 mm cutting interval as listed in the table.
What is the cutting interval for each supply type (NP vs PB)?
For NP (roll-to-roll): 12V = 22.73 mm and 24V = 45.45 mm. For PB (panelized): 12V / 24V = 45.45 mm. Always cut only at the marked cut points.
Which color temperatures are available?
This series supports 2700K / 3000K / 4000K / 6500K, covering warm white to cool white for different lighting environments.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

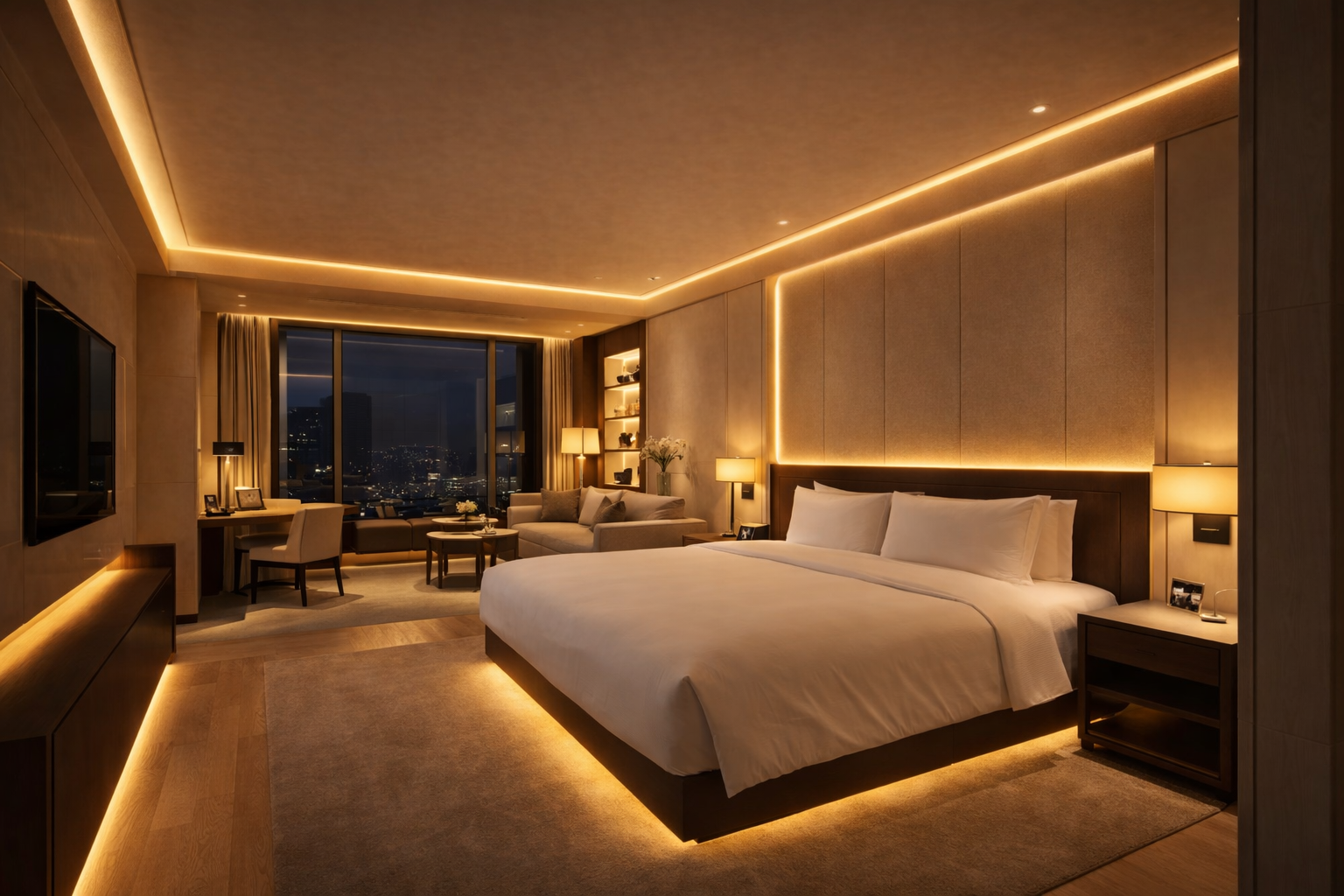

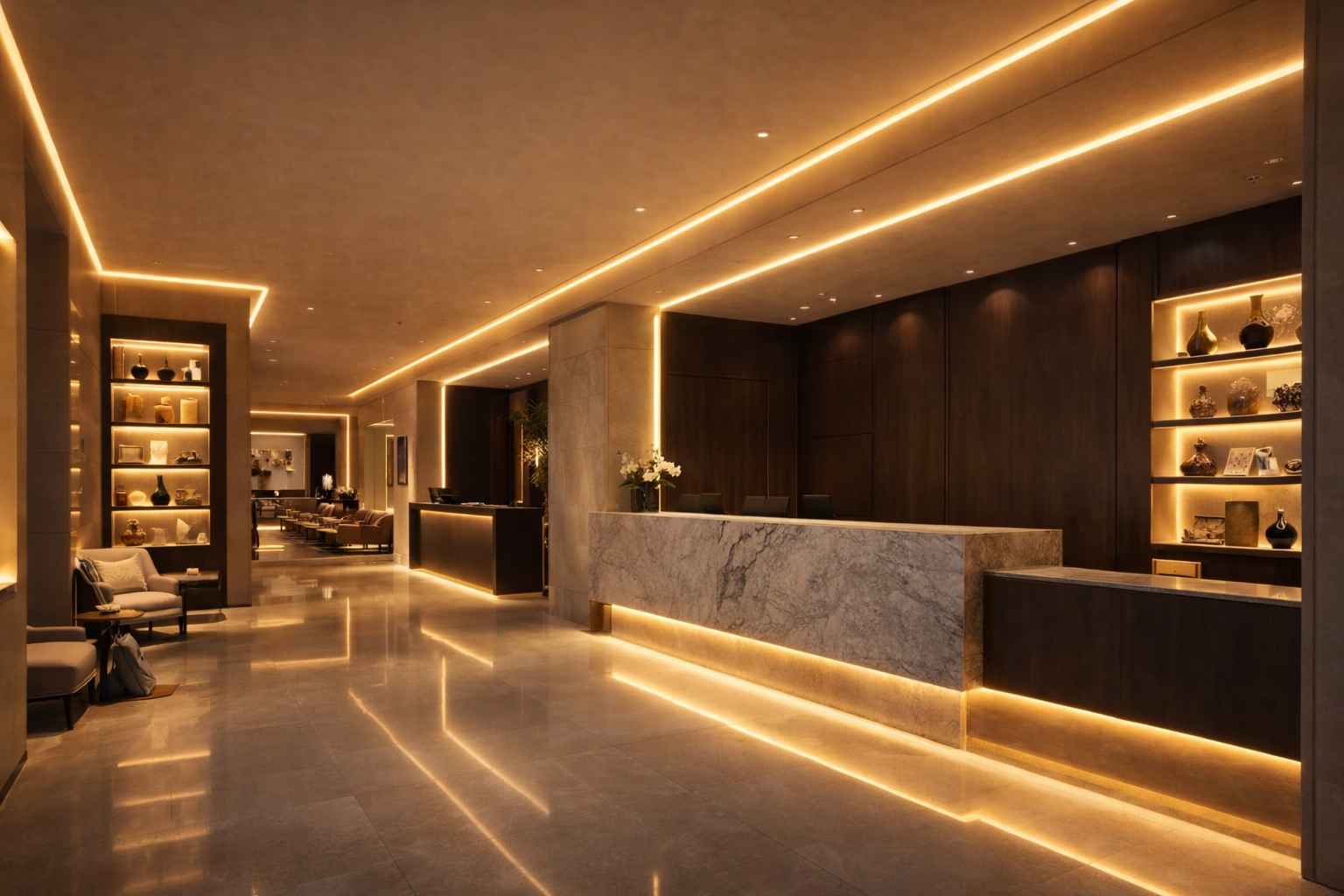

The LUMSET® COB Strip (528 LEDs/m, 10mm, CRI90+) is designed for premium, dot-free linear lighting where a higher LED density delivers a smoother and more continuous light line. It is well-suited for cove lighting, retail shelves and display cases, showroom feature walls, hotel reception and corridor accents, and other architectural detail lines that require clean, uniform illumination. With 2700K–6500K options, it supports both warm ambient scenes and crisp functional lighting. Choose NP (roll-to-roll) for standard continuous installations and flexible cutting options, or PB (panelized) when spliced-board handling and tighter color consistency (SDCM < 3) are preferred for project workflows.
