Standard-Density COB

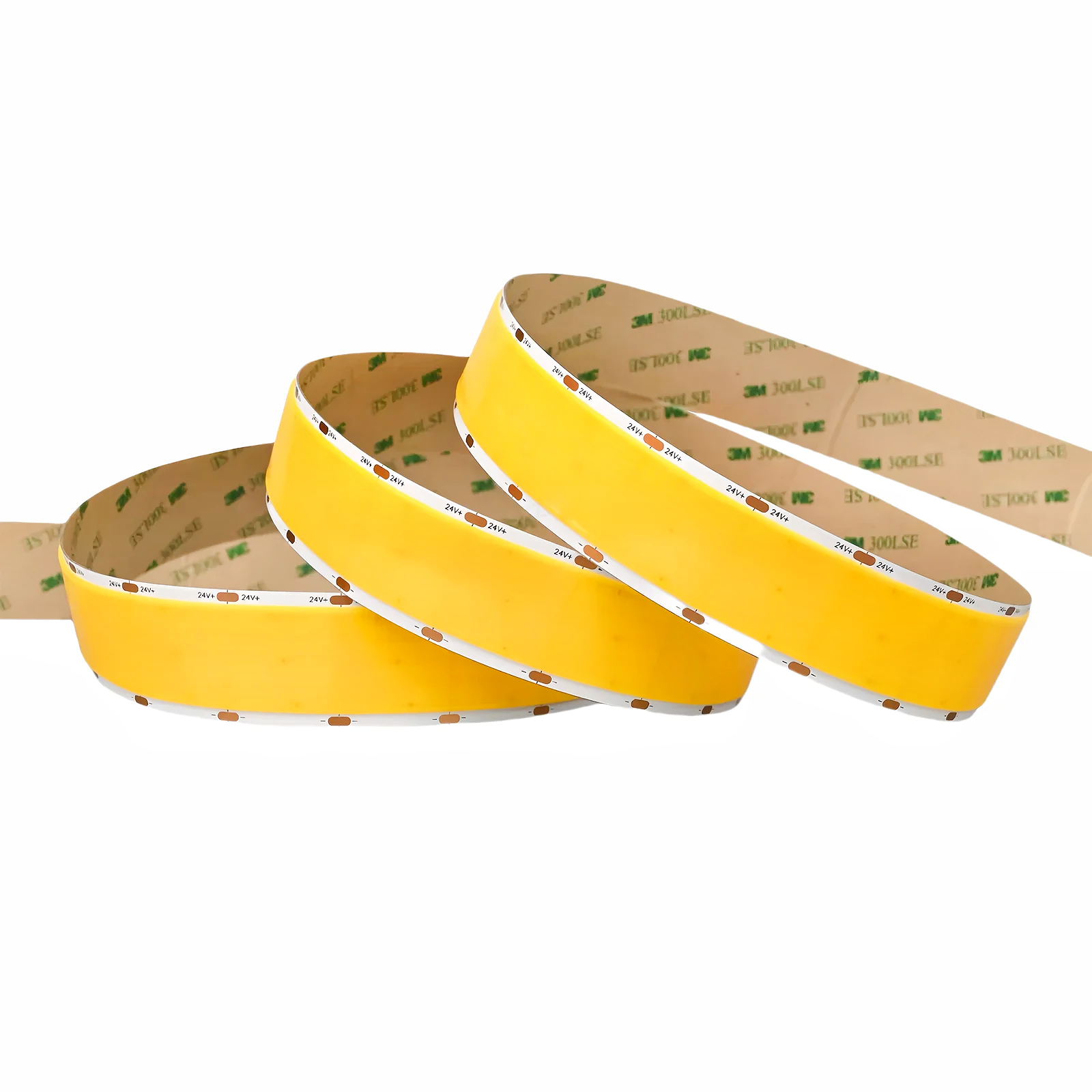

LUMSET® COB Strip | Ultra High-Output | 1600 LEDs/m | 30mm | 24V | CRI90+

  • Voltage
    DC 24 V
  • Cutting Interval
    25 mm (24 V)
  • Power
    40 W/m
  • PCB Width
    30 mm
Ask about this product

Intro description


− +
LUMSET® COB Strip | Ultra High-Output | 1600 LEDs/m | 30mm | 24V | CRI90+ (Model: LS-COB-UHO-1600-30MM-24V-40W-C250-PB)
Common specs: LED Tech: COB LED Density: 1600 LEDs/m Voltage: 24V PCB Width: 30mm Power: 40W/m CRI (Ra): > 90 Cut: 25mm (C250) Supply: PB SDCM: < 3 IP: IP20 Encapsulation: Bare PCB
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · 1600 LEDs/m · 30mm · 24V · PB · SDCM < 3 · C250 · 2700K 24V 30 mm 40 W/m 2700K 25 mm IP20 Bare PCB
COB · 1600 LEDs/m · 30mm · 24V · PB · SDCM < 3 · C250 · 3000K 24V 30 mm 40 W/m 3000K 25 mm IP20 Bare PCB
COB · 1600 LEDs/m · 30mm · 24V · PB · SDCM < 3 · C250 · 4000K 24V 30 mm 40 W/m 4000K 25 mm IP20 Bare PCB
COB · 1600 LEDs/m · 30mm · 24V · PB · SDCM < 3 · C250 · 6500K 24V 30 mm 40 W/m 6500K 25 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.
Supply codes: NP = Roll-to-Roll (non-panelized continuous roll); PB = Panelized (spliced board segments).


Technical Specifications

Model / SKU Code
LS-COB-UHO-1600-30MM-24V-40W-C250-PB
Brand
LUMSET
Product Form
LED Strip
FPCB
Panelized
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
1600
Structure
Single Row
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

Why choose 1600 LEDs/m for project lighting?
It provides an extremely smooth, high-output light line for demanding architectural and commercial installations.
What is the cutting interval?
This 24V version is cuttable every 25 mm (C250). Always cut only at the marked cut points.
Which color temperatures are available?
This series supports 2700K / 3000K / 4000K / 6500K.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

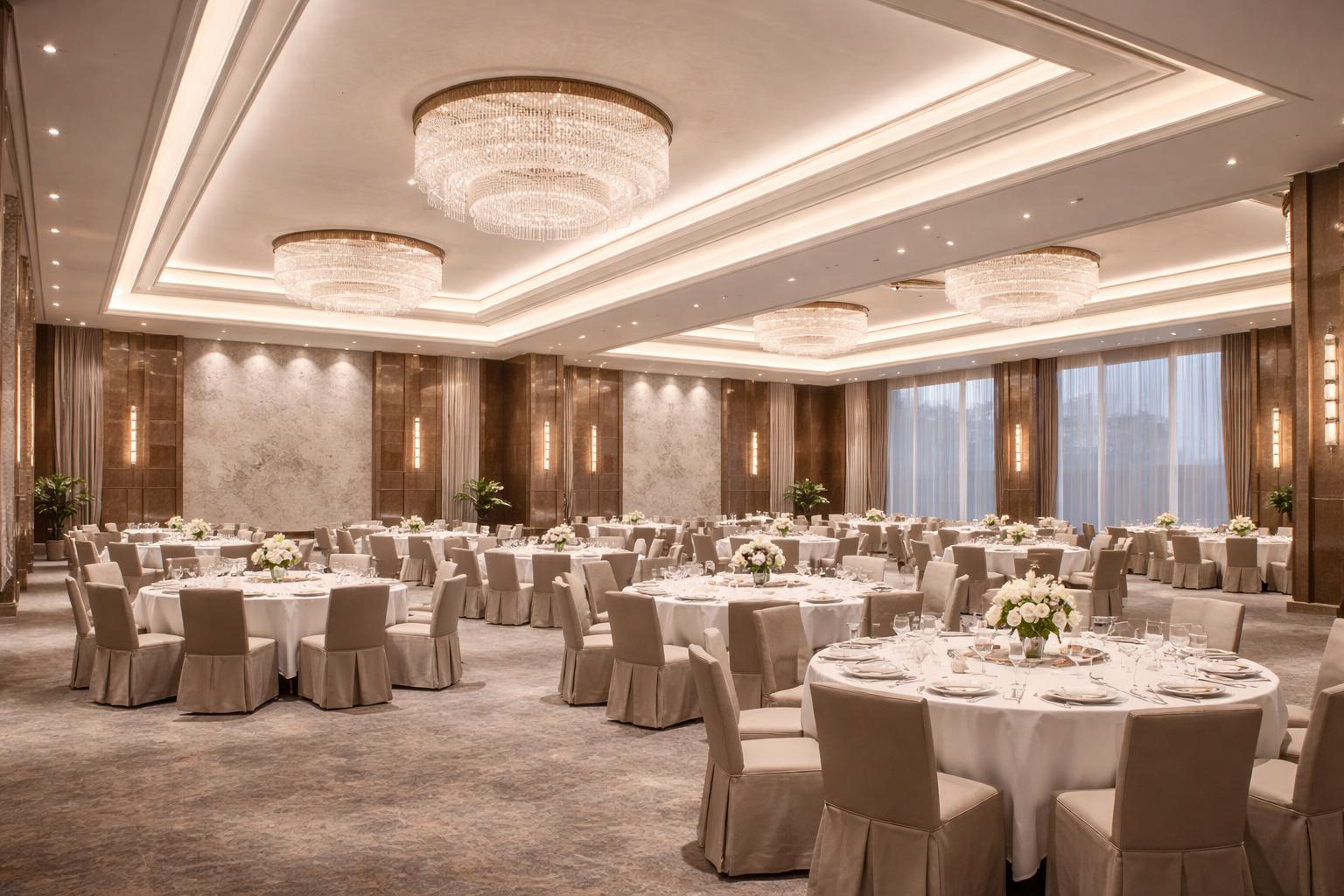

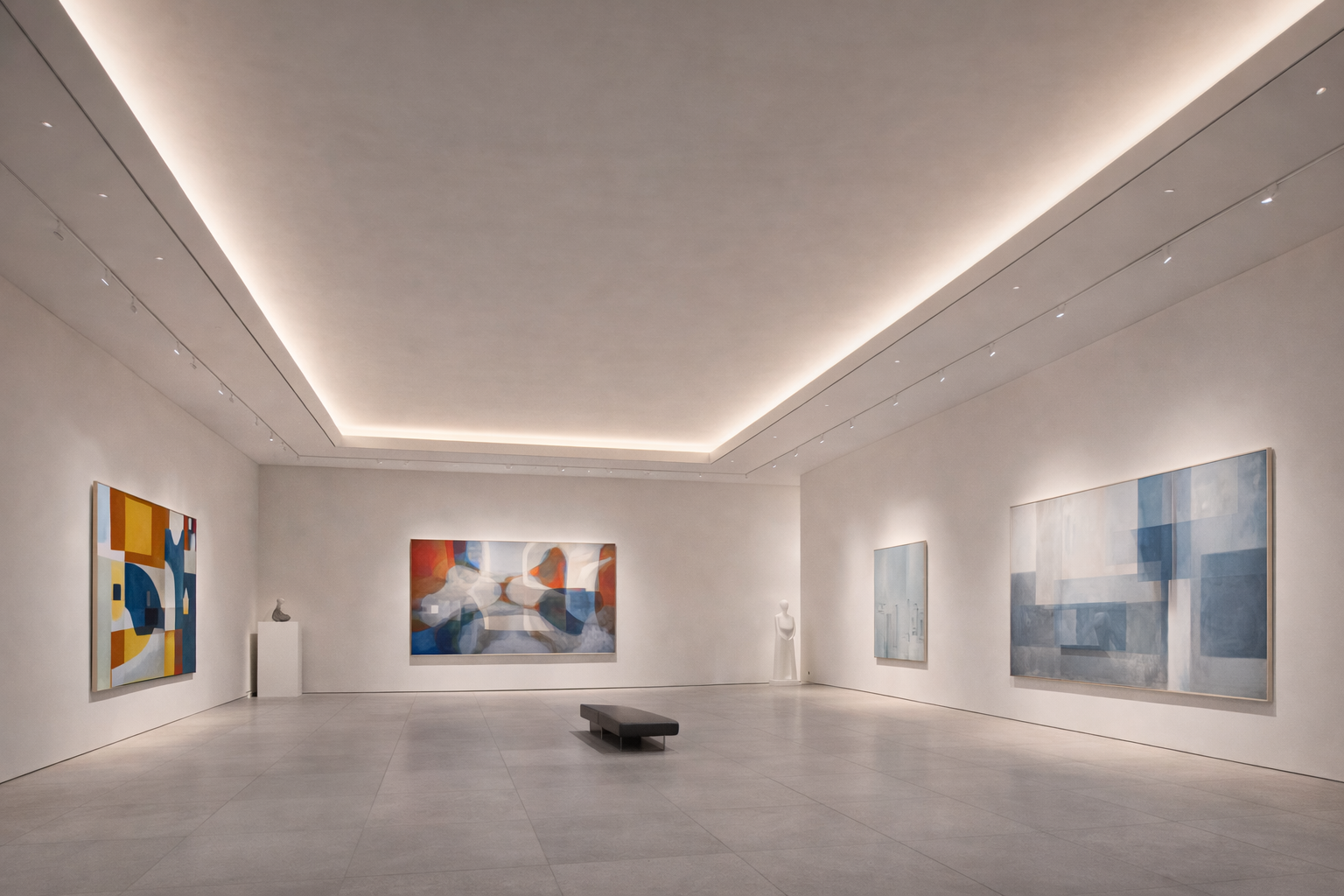

Ideal for ultra high-output project lighting, such as large commercial coves, public area ceiling lines, exhibition perimeter lighting, and architectural channels where brightness and uniformity are critical.
