Ultra-Narrow COB Strip

LUMSET® Ultra-Narrow COB Strip | 384 LEDs/m | CRI90+

  • Voltage
    DC 12 V / DC 24 V
  • Cutting Interval

    20.83 mm (12 V) - (3/5mm)

    41.66 mm (12 V) - (8mm)

    41.66 mm (24 V) - (3/5/8mm)

  • Power

    7w/m (12v) - 3/5mm

    10w/m(12v) - 8mm

    10w/m(24v) - 5/8mm

  • PCB Width

    3 mm, 5 mm, 8 mm

Ask about this product

Intro description


− +

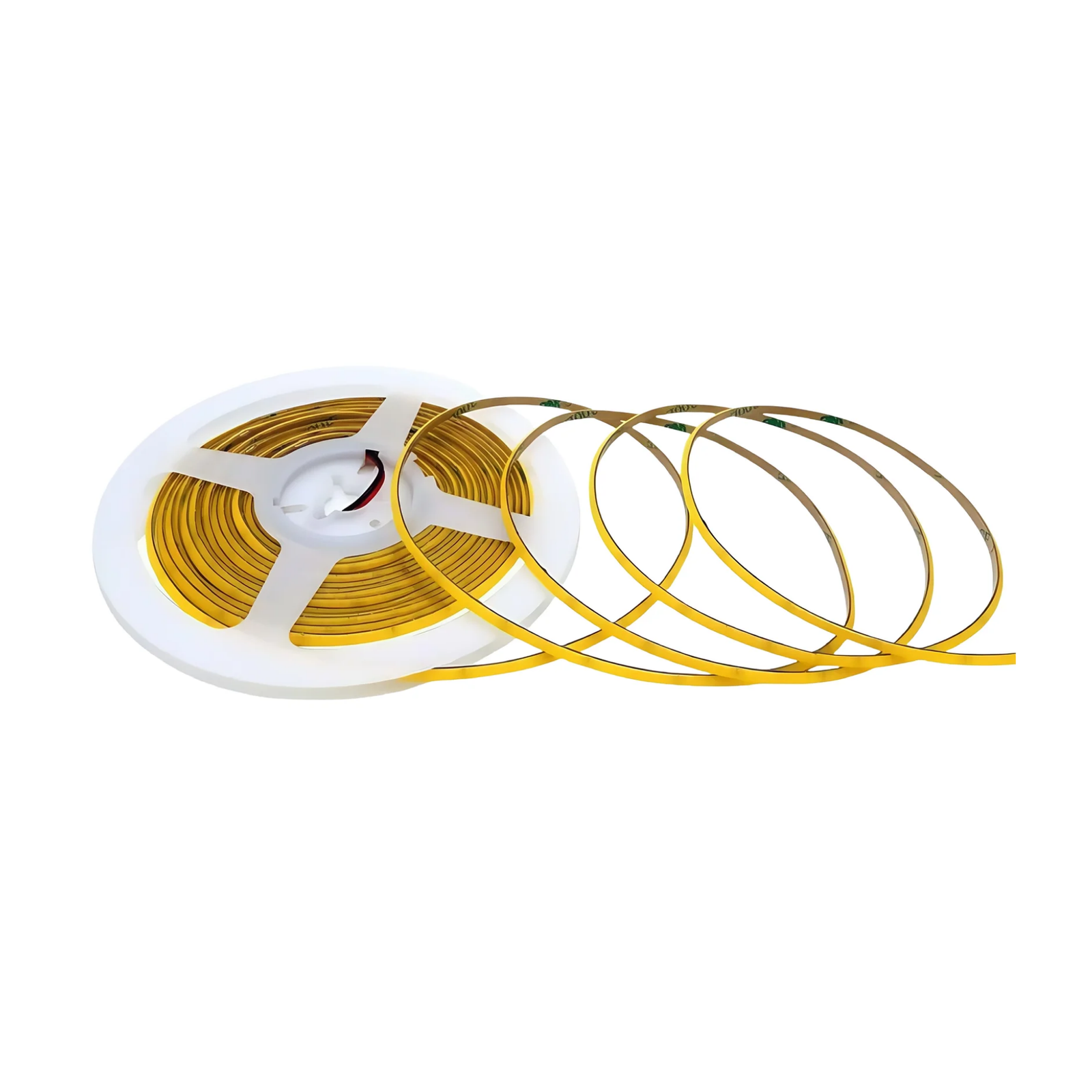

LUMSET® COB Strip | 384 LEDs/m | CRI90+ · White CCT Variants
Common specs: LED Tech: COB CRI (Ra): ≥ 90 CCT: 2700/3000/4000/6500K IP: IP20 Encapsulation: Bare PCB LED Density: 384 LEDs/m
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB · 384 LEDs/m · 3mm · 12V 12V 3 mm 7 W/m 2700K / 3000K / 4000K / 6500K 20.83 mm IP20 Bare PCB
COB · 384 LEDs/m · 3mm · 24V 24V 3 mm 10 W/m 2700K / 3000K / 4000K / 6500K 41.66 mm IP20 Bare PCB
COB · 384 LEDs/m · 5mm · 12V 12V 5 mm 7 W/m 2700K / 3000K / 4000K / 6500K 20.83 mm IP20 Bare PCB
COB · 384 LEDs/m · 5mm · 24V 24V 5 mm 10 W/m 2700K / 3000K / 4000K / 6500K 41.66 mm IP20 Bare PCB
COB · 384 LEDs/m · 8mm · 12V 12V 8 mm 10 W/m 2700K / 3000K / 4000K / 6500K 41.66 mm IP20 Bare PCB
COB · 384 LEDs/m · 8mm · 24V 24V 8 mm 10 W/m 2700K / 3000K / 4000K / 6500K 41.66 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.


Technical Specifications

Model / SKU Code
LS-COB-384-CRI90-CCT
Brand
LUMSET
Product Form
LED Strip
FPCB
Panelized
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
384
Structure
Single Row
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

What’s the difference between 12V and 24V versions?

12V versions run at 7W/m with a 20.83 mm cutting interval (3mm/5mm widths). 24V versions run at 10W/m with a 41.66 mm cutting interval (3mm/5mm/8mm). Choose based on your driver system and project requirements.

Which PCB width should I choose: 3mm, 5mm, or 8mm?
3mm is ideal for ultra-narrow channels and compact showcase lighting. 5mm offers a balance of slim fit and wider profile compatibility. 8mm is great for standard profiles where easier installation and stronger compatibility are preferred.
Can I cut the strip to length, and how do I cut it correctly?
Yes. Cut only along the marked cutting points. Cutting intervals are 20.83 mm (12V) and 41.66 mm (24V). After cutting, use proper connectors or soldering methods and match the driver voltage to the strip.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

Designed for clean, dot-free linear lighting in compact installations. The 3mm and 5mm options fit ultra-narrow aluminum profiles for under-cabinet lighting, showcases, shelf accents, and decorative outlines. The 8mm option provides broader profile compatibility for general linear lighting and architectural detailing. With CRI90+ and 2700K/3000K/4000K/6500K choices, it’s ideal for homes, retail displays, and hospitality projects where accurate color and a smooth light line matter.
