Ultra-Narrow COB Strip

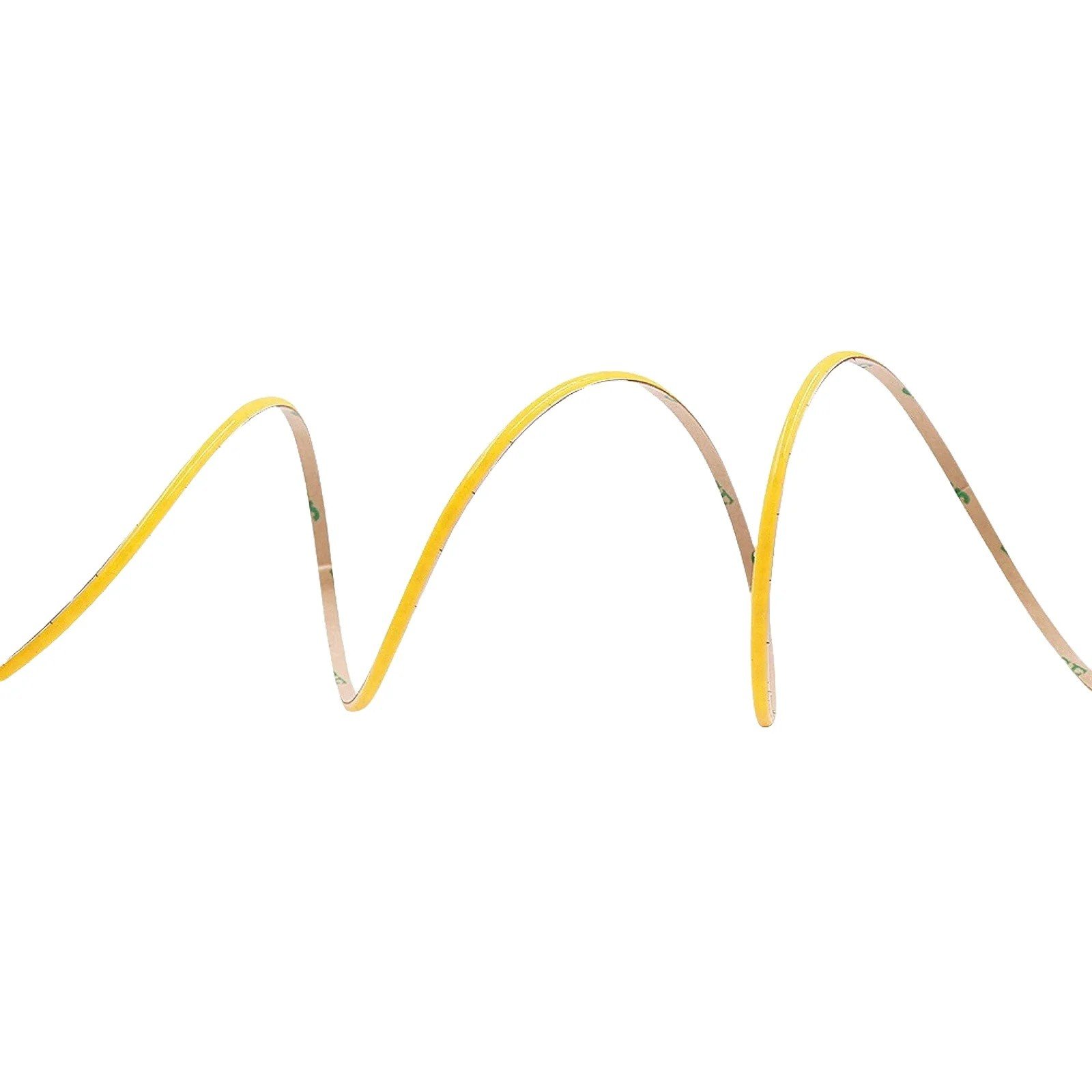

LUMSET® Ultra-Narrow COB Strip | 400 LEDs/m | CRI90+

  • Voltage
    DC 5/12/24 V
  • Cutting Interval
    10 mm (5 V) / 10 mm (12 V) / 20 mm (24 V)
  • Power
    2.7/3/4mm (5.5w/m) - 5v 5mm (7w/m) - 5v 2.7/3mm (7w/m) - 12/24v 4/5mm (7/10w/m) - 12/24v
  • PCB Width
    2.7 mm, 3 mm, 4 mm, 5 mm
Ask about this product

Intro description


− +
LUMSET® Ultra-Narrow COB Strip · 400 LEDs/m · CRI90+ · Variants
Common specs: LED Tech: COB LED Density: 400 LEDs/m CRI (Ra): ≥ 90 SDCM: < 5 IP: IP20 Encapsulation: Bare PCB Supply: Non-Panelized
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
Ultra-Narrow · 2.7mm · 5V 5V 2.7 mm 5.5 W/m 3000K / 4000K / 6500K 10 mm IP20 Bare PCB
Ultra-Narrow · 3mm · 5V 5V 3 mm 5.5 W/m 3000K / 4000K / 6500K 10 mm IP20 Bare PCB
Ultra-Narrow · 4mm · 5V 5V 4 mm 5.5 W/m 3000K / 4000K / 6500K 10 mm IP20 Bare PCB
Ultra-Narrow · 5mm · 5V 5V 5 mm 7 W/m 3000K / 4000K / 6500K 10 mm IP20 Bare PCB
Ultra-Narrow · 2.7mm · 12V 12V 2.7 mm 7 W/m 2700K / 3000K / 4000K / 6500K 10 mm IP20 Bare PCB
Ultra-Narrow · 3mm · 12V 12V 3 mm 7 W/m 2700K / 3000K / 4000K / 6500K 10 mm IP20 Bare PCB
Ultra-Narrow · 4mm · 12V 12V 4 mm 7 W/m 3000K / 4000K / 6500K 10 mm IP20 Bare PCB
Ultra-Narrow · 5mm · 12V 12V 5 mm 7 W/m 3000K / 4000K / 6500K 10 mm IP20 Bare PCB
Ultra-Narrow · 2.7mm · 24V 24V 2.7 mm 7 W/m 2700K / 3000K / 4000K / 6500K 20 mm IP20 Bare PCB
Ultra-Narrow · 3mm · 24V 24V 3 mm 7 W/m 2700K / 3000K / 4000K / 6500K 20 mm IP20 Bare PCB
Ultra-Narrow · 4mm · 24V 24V 4 mm 10 W/m 3000K / 4000K / 6500K 20 mm IP20 Bare PCB
Ultra-Narrow · 5mm · 24V 24V 5 mm 10 W/m 3000K / 4000K / 6500K 20 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.


Technical Specifications

Model / SKU Code
LS-COB-UN-400-CRI90
Brand
LUMSET
Product Form
LED Strip
FPCB
Non-Panelized
Current Type
Constant Voltage
Max Run Length (m)
5
LED Density (LEDs/m)
400
Structure
Single Row
Adhesive
3M
Roll Length
5m
Warranty
2 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

Which voltage should I choose: 5V, 12V, or 24V?
Choose 5V for compact, short-run installations with 10 mm cutting. Choose 12V for standard constant-voltage projects with 10 mm cutting. Choose 24V when you prefer 20 mm cutting and higher power options on wider PCBs (4/5 mm).
Which PCB width is best for my profile: 2.7mm, 3mm, 4mm, or 5mm?
2.7mm / 3mm are ideal for ultra-slim channels and tight spaces. 4mm balances slim fit and broader profile compatibility. 5mm is the most universal option for narrow profiles and easier installation.
Can I cut the strip, and how do I cut it correctly?
Yes. Cut only at the marked cutting points. Cutting intervals are 10 mm (5V/12V) and 20 mm (24V). Always match the driver voltage to the strip and use proper connectors or soldering after cutting.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

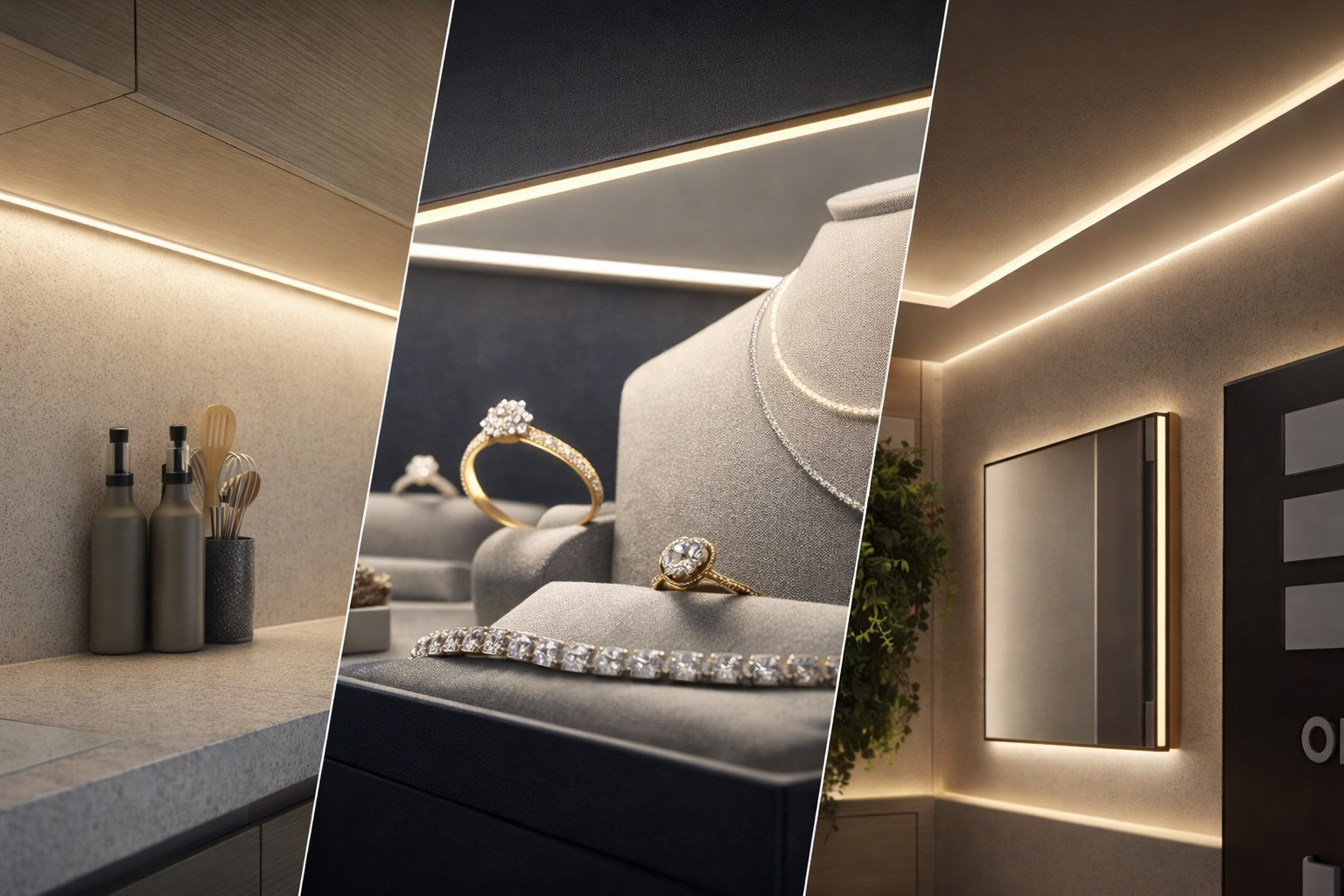

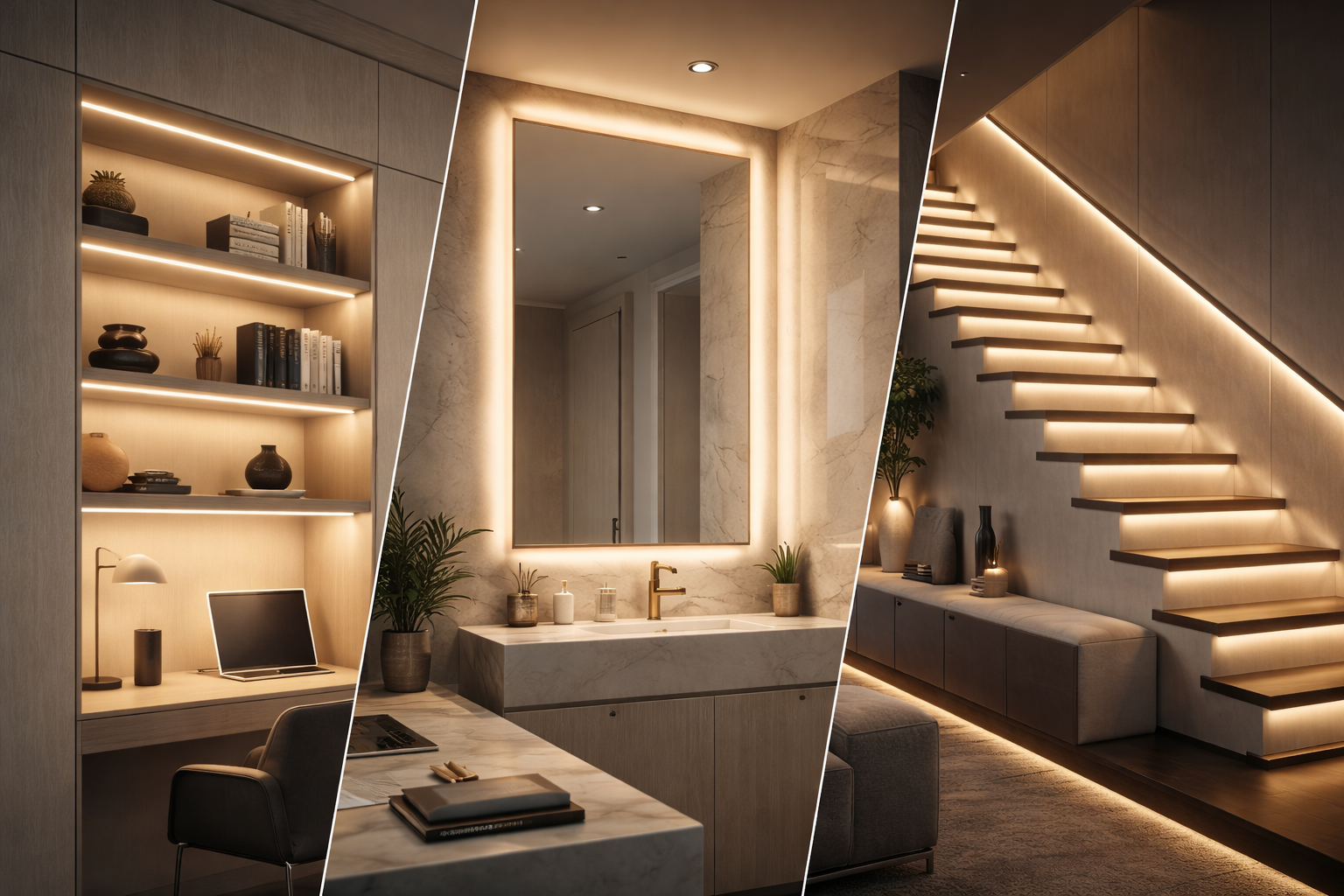

The LUMSET® Ultra-Narrow COB Strip (400 LEDs/m, CRI90+) is built for precision linear lighting where space is limited and a clean, dot-free light line matters. The 2.7mm / 3mm options fit ultra-slim channels for showcases, under-cabinet task lighting, shelf accents, jewelry displays, and fine decorative outlines. The 4mm / 5mm options offer broader profile compatibility for cove lighting, cabinet contours, signage edges, and architectural detail lines. With CCT options up to 6500K and high color rendering, it’s ideal for residential, retail, and hospitality projects that require smooth, premium-looking illumination.
