COB LED Strips

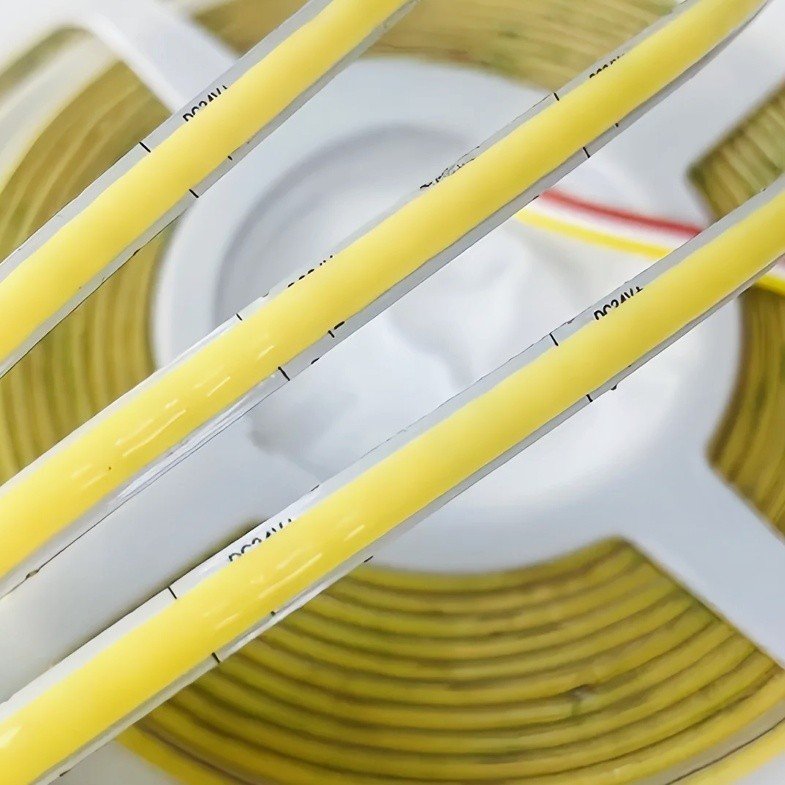

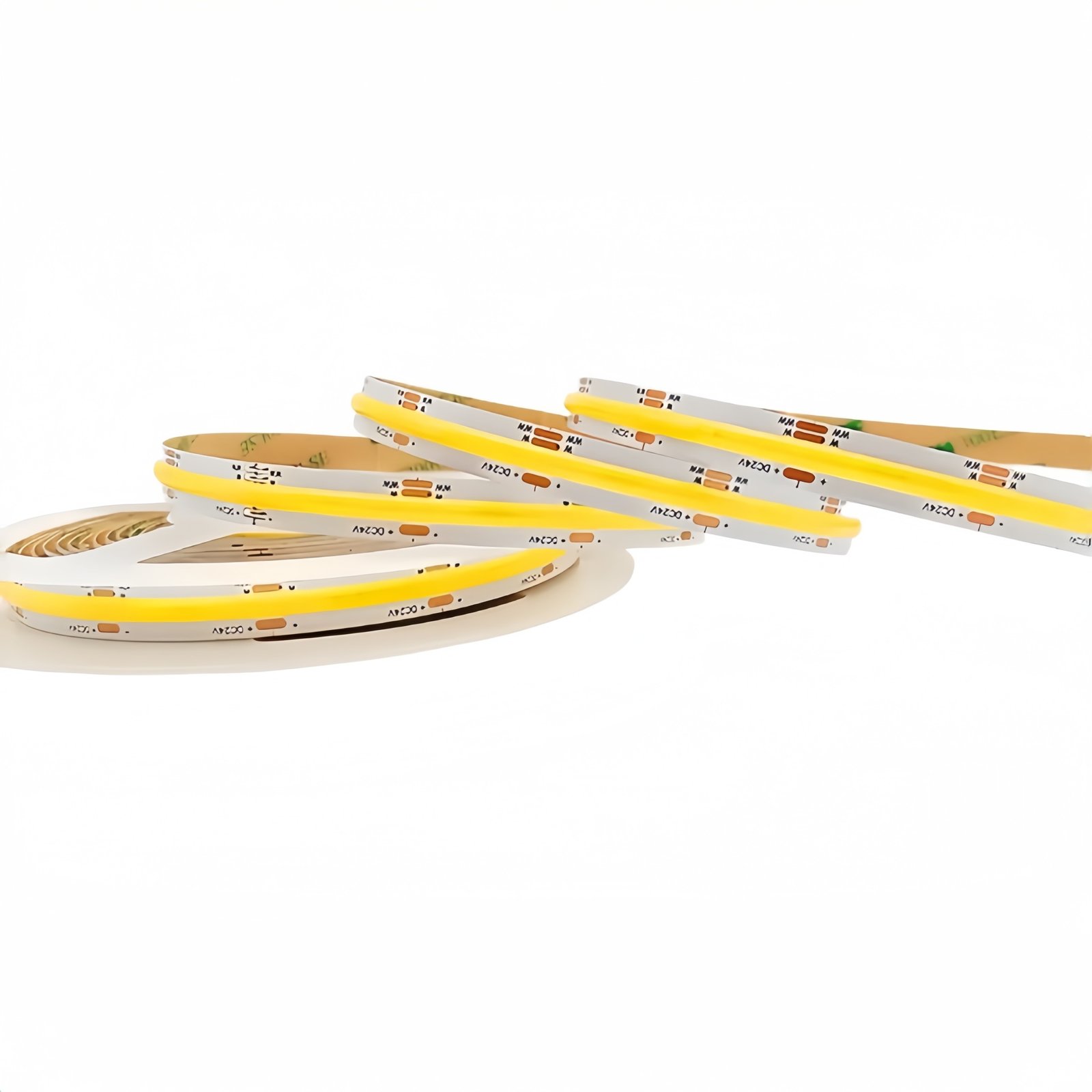

LUMSET® COB Dual CCT Strip | 3-Wire | 608 LEDs/m | CRI90+

  • Voltage
    DC 12 V / DC 24 V
  • Cutting Interval
    13.1 mm (12 V) / 26.3 mm (24 V)
  • Power
    6+6 (Max 12) or 7+7 (Max 14) (Dual CCT)
  • PCB Width
    5 mm, 8 mm, 10 mm
Ask about this product

Intro description


− +
COB-STD (COB – Standard) · Tunable White Variants
Common specs: Dimming: PWM CRI (Ra): 90 SDCM: < 3 IP: IP20 Encapsulation: Bare PCB Neon Cross Section: N/A
Variant Voltage PCB Width Power (W/m) CCT / Color Cutting Interval IP Encapsulation
COB-STD · 5mm · 12V 12V 5 mm 6 + 6 W/m Tunable White 26.3 mm IP20 Bare PCB
COB-STD · 5mm · 24V 24V 5 mm 6 + 6 W/m Tunable White 26.3 mm IP20 Bare PCB
COB-STD · 8mm · 12V 12V 8 mm 6 + 6 W/m Tunable White 13.1 mm IP20 Bare PCB
COB-STD · 8mm · 24V 24V 8 mm 6 + 6 W/m Tunable White 26.3 mm IP20 Bare PCB
COB-STD · 10mm · 12V 12V 10 mm 7 + 7 W/m Tunable White 26.3 mm IP20 Bare PCB
COB-STD · 10mm · 24V 24V 10 mm 7 + 7 W/m Tunable White 26.3 mm IP20 Bare PCB
Tip: Please add to cart based on the specifications in the table.


Technical Specifications

Model / SKU Code
LS-COB-CCT3W-608
Brand
LUMSET
Product Form
LED Strip
FPCB
Panelized
Current Type
Constant Voltage
LED Density (LEDs/m)
608
Structure
Single Row
Adhesive
3M
Roll Length
5m
Warranty
3 Years
Certifications
  • CE
  • RoHS

Recent products

Frequently Asked Questions

How does a 3-wire CCT (tunable white) COB strip work for dimming and color temperature?
A 3-wire CCT strip typically uses one common positive (V+) + two negative channels (WW- / CW-): one channel for Warm White, the other for Cool White. With a CCT controller (dual-channel output) or two-channel PWM dimmer, you control the two channels separately to blend smoothly across the CCT range (e.g., 2700K–6500K), while also adjusting brightness. In other words: channel mixing sets the color temperature, and PWM level sets the brightness.
Can I use a normal single-channel dimmer? What happens if I do?
If you use a single-channel dimmer/driver, you can usually reduce brightness, but true CCT control is limited—you may be stuck at one mixed CCT, or you can only switch on one channel (pure warm or pure cool). For real tunable white + dimming, we recommend a dedicated CCT controller (two-channel output) for smoother transitions and more stable dimming.
What are the most common installation mistakes, and how do I avoid flicker or uneven brightness?
The most common issues come from controller/power mismatch, voltage drop from thin wires, or single-end feeding over long runs, which can cause front-bright/back-dim. To avoid this: • Size the power supply with headroom (typically 1.2–1.3× the maximum load). • Use thicker cables for longer runs, and consider dual-end feeding or segmented feeding when needed. • Choose a controller that supports dual-channel PWM and matches your voltage (12V/24V) to reduce flicker and improve consistency.
See All FAQ

Downloads

  • Optical Test Report
  • Datasheet
  • Manual

Application

The 3-wire tunable-white COB strip is made for commercial spaces like hotel lobbies, boutiques, and cafés. One strip delivers warm, cool, and smooth mixed lighting—cooler tones for a clean, professional daytime look, and warmer tones for a premium, relaxing night ambience. COB continuous light output is uniform and dot-free, ideal for cove lighting, wall washing, shelves, and display cases. Switch scenes anytime to match traffic, time, or merchandising themes.
